Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-12D

Intake Air Distribution and Filtering - TDV8 3.6L Diesel

Charge Air Cooler (G946538)

REMOVAL AND INSTALLATION
  • 19.42.15
  • Intercooler - renew
  • TDV8
  • 4.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the cooling module. For additional information, refer to: Cooling Module (303-03E Engine Cooling - TDV8 3.6L Diesel, Removal and Installation).

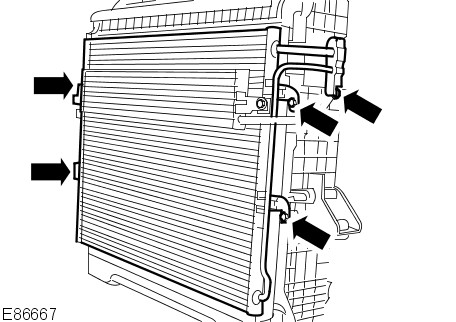

  4. E86667
    Remove the condenser core and auxiliary radiator.
      • Remove the 5 bolts.

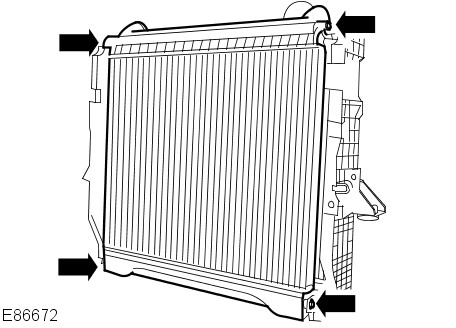

  5. E86672
    Remove the charge air cooler.
      • Remove the 4 screws.
Installation
  1. Install the charge air cooler.
      • Tighten the screws.
  2. Install the condenser core and auxiliary radiator.
      • Tighten the bolts to 8 Nm (6 lb.ft).
  3. Install the cooling module. For additional information, refer to: Cooling Module (303-03E Engine Cooling - TDV8 3.6L Diesel, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
