Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-03E

Engine Cooling - TDV8 3.6L Diesel

Radiator (G940586)

REMOVAL AND INSTALLATION
  • 26.40.01
  • Radiator Assembly - Renew
  • TDV8
  • 4.40
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the charge air cooler. For additional information, refer to: Charge Air Cooler (303-12D Intake Air Distribution and Filtering - TDV8 3.6L Diesel, Removal and Installation).

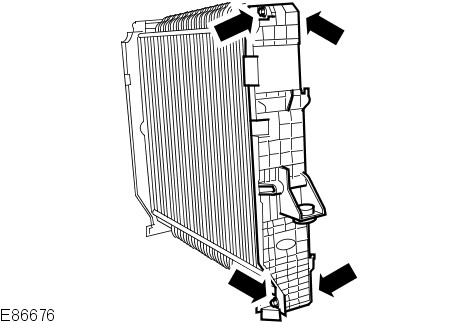

  4. NOTE:

    LH illustration shown, RH is similar.

    E86676
    Remove the 2 radiator mounting brackets.
      • Remove the 8 bolts.
Installation
  1. Install the radiator mounting brackets.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  2. Install the charge air cooler. For additional information, refer to: Charge Air Cooler (303-12D Intake Air Distribution and Filtering - TDV8 3.6L Diesel, Removal and Installation).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
