Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-03E

Engine Cooling - TDV8 3.6L Diesel

Coolant Pump (G940585)

REMOVAL AND INSTALLATION
  • 26.50.01
  • Coolant Pump - Renew
  • TDV8
  • 1.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the accessory drive belt. For additional information, refer to: Accessory Drive Belt (303-05D Accessory Drive - TDV8 3.6L Diesel, Removal and Installation).

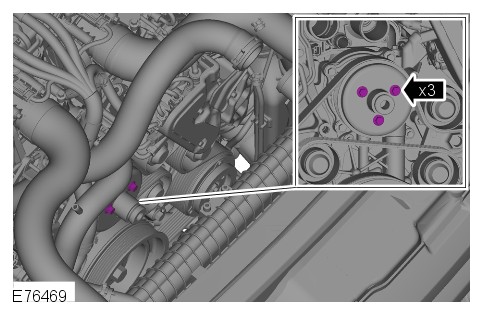

  4. E76469
    Loosen the 3 coolant pump pulley bolts.
  5. E85811
    Remove the cooling fan belt.
      • Release the tension from the belt.

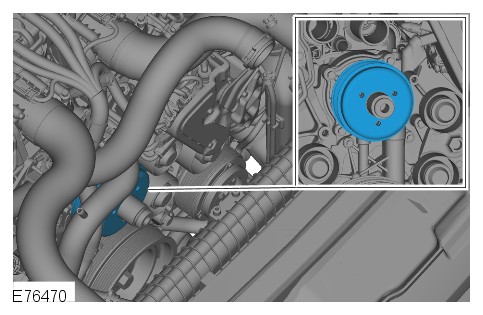

  6. E76470
    Remove the coolant pump pulley.
      • Remove the 3 bolts.
  7. CAUTION:

    Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

    NOTE:

    Some fluid spillage is inevitable during this operation.

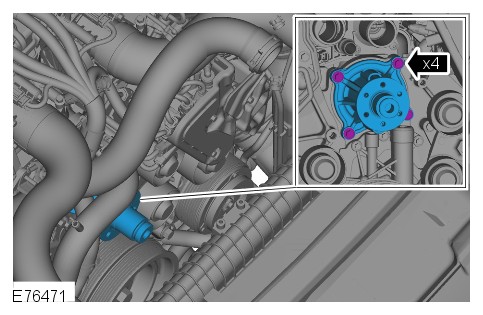

    E76471
    Remove the coolant pump.
      • Position a container to collect the fluid spillage.
      • Remove the 4 bolts.
      • Remove and discard the O-ring seal.
Installation
  1. NOTE:

    Lubricate the new O-ring seal with clean engine coolant.

    Install the coolant pump.
      • Install a new O-ring seal.
      • Tighten the bolts to 23 Nm (17 lb.ft).
      • Remove the container.
  2. Install the coolant pump pulley.
      • Loosely install the bolts.
  3. Install the cooling fan belt.
      • Clean and inspect the drive pulleys for damage.
  4. Tighten the coolant pump pulley bolts.
      • Tighten the bolts to 25 Nm (18 lb.ft).
  5. Install the accessory belt. For additional information, refer to: Accessory Drive Belt (303-05D Accessory Drive - TDV8 3.6L Diesel, Removal and Installation).
  6. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
