Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-05D

Accessory Drive - TDV8 3.6L Diesel

Accessory Drive Belt (G939960)

REMOVAL AND INSTALLATION
  • 86.10.03
  • Drive belt - alternator - renew
  • TDV8
  • 1.00
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the viscous coupling. For additional information, refer to: Cooling Fan (303-03E Engine Cooling - TDV8 3.6L Diesel, Removal and Installation).

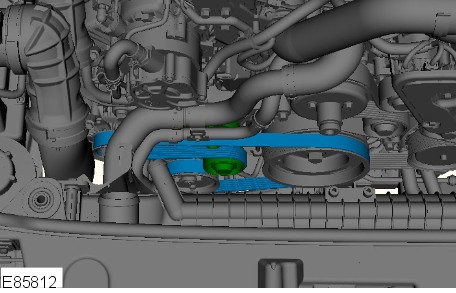

  4. E85812
    Remove the accessory drive belt.
      • Release the tension from the belt.
Installation
  1. To install, reverse the removal procedure.
      • Clean and inspect the drive pulleys for damage.
