Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-03E

Engine Cooling - TDV8 3.6L Diesel

Cooling Fan (G939051)

REMOVAL AND INSTALLATION
  • 26.25.19
  • Coupling unit - viscous fan - renew
  • TDV8
  • 1.00
  • USED WITHINS

Special Tool(s)

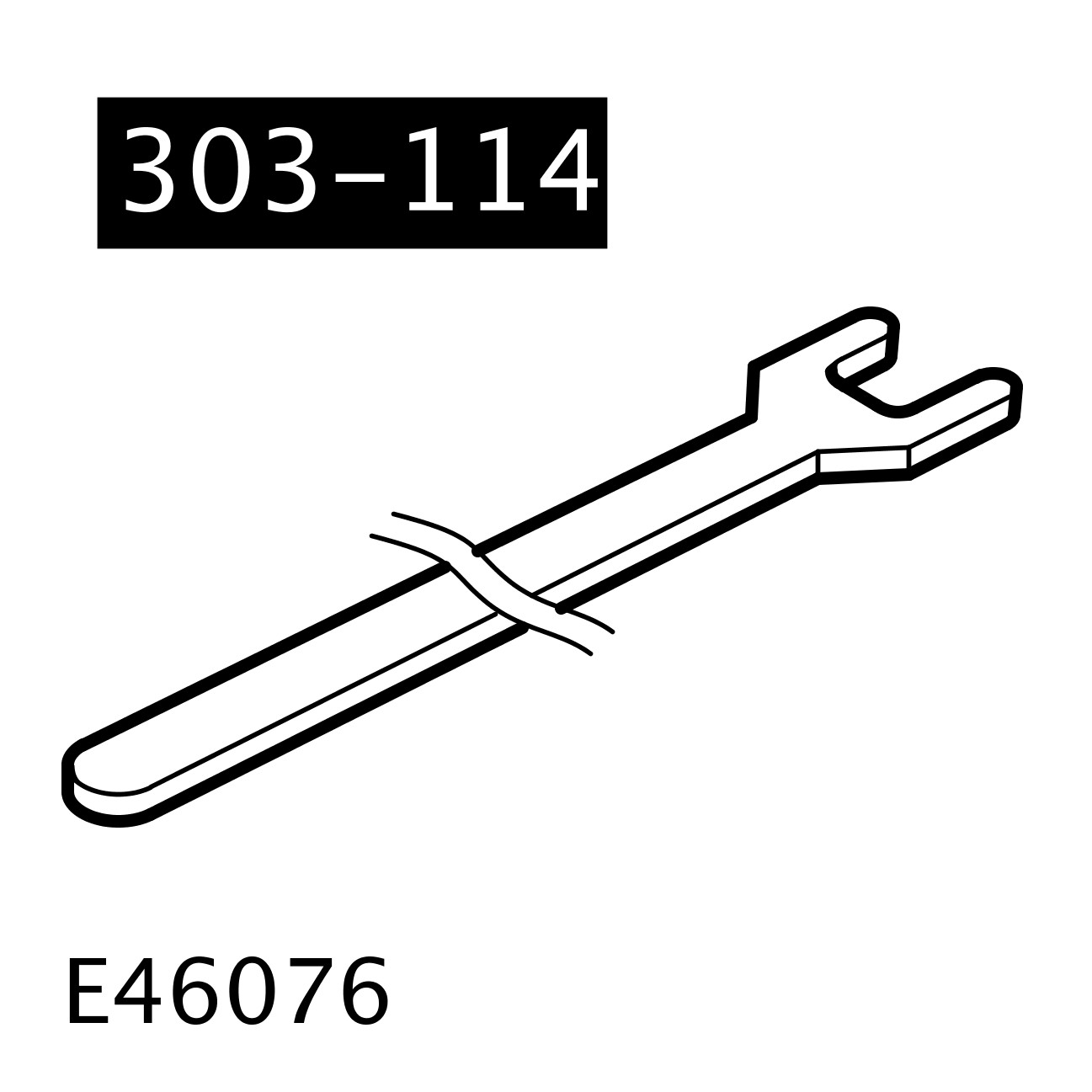

E46076

303-1142

Viscous coupling spanner

E55382

303-1143

Viscous coupling pulley retaining tool

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Partially drain the cooling system. For additional information, refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).

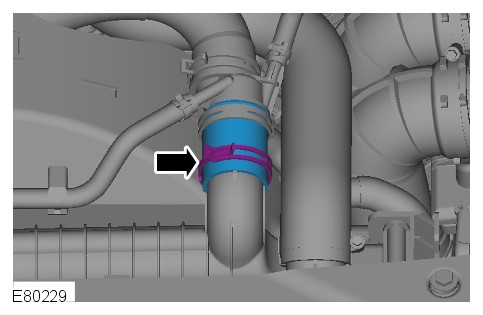

  4. E80229
    Disconnect the radiator upper hose.
      • Release the clip.

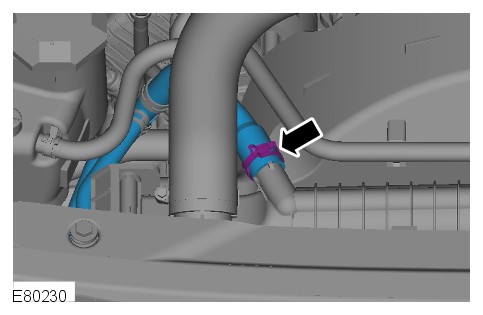

  5. E80230
    Disconnect the auxiliary radiator coolant hose.
      • Release the clip.

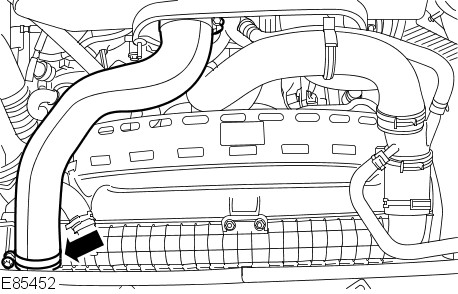

  6. E85452
    Disconnect the RH charge air cooler outlet pipe.
      • Loosen the clip.

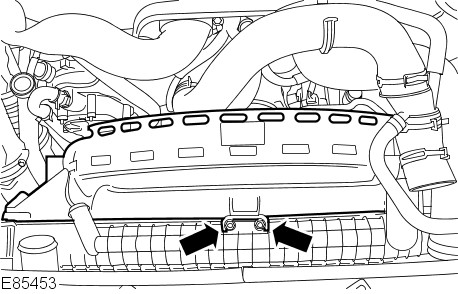

  7. E85453
    Remove the cooling fan upper shroud.
      • Release from the 3 clips.

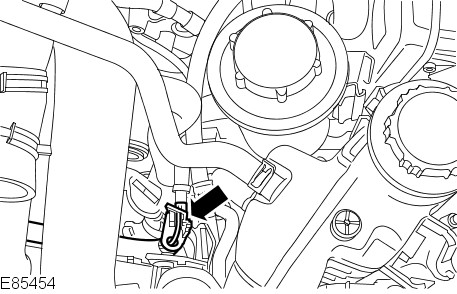

  8. E85454
    Disconnect the cooling fan control electrical connector.
      • Release the cooling fan control electrical connector from the cooling fan lower shroud.
  9. NOTE:

    The thread is left handed.

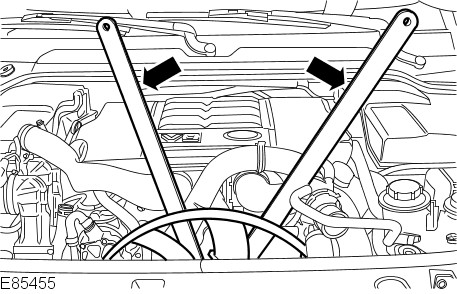

    E85455
    Using the special tools, remove the cooling fan.
  10. NOTE:

    Do not disassemble further if the component is removed for access only.

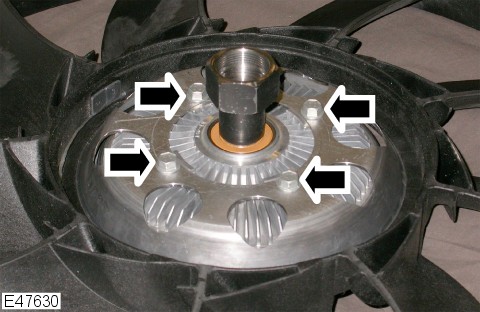

    E47630
    Remove the viscous coupling.
      • Remove the 4 bolts.
Installation
  1. To install, reverse the removal procedure.
      • Tighten the viscous coupling bolts to 10 Nm (7 lb.ft).
      • Tighten the cooling fan nut to 65 Nm (48 lb.ft).
  2. Fill and bleed the cooling system. For additional information, refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).
