2007.0 Range Rover Sport (LS), 303-03E

Engine Cooling - TDV8 3.6L Diesel

Cooling Fan Shroud (G940583)

REMOVAL AND INSTALLATION
  • 26.25.11
  • Fan Cowl - Renew
  • TDV8
  • 1.20
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the viscous fan assembly. For additional information, refer to: Cooling Fan (303-03E Engine Cooling - TDV8 3.6L Diesel, Removal and Installation).

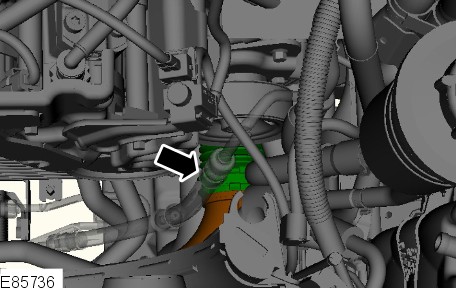

  4. E85736
    Release the LH turbocharger intake tube.
      • Release the clip.

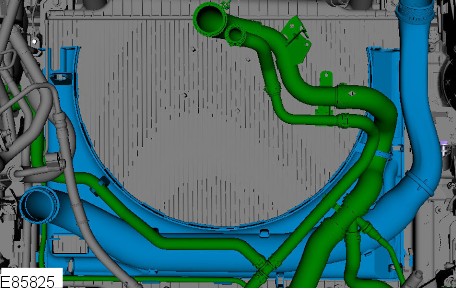

  5. E85825
    Remove the cooling fan shroud.
      • Release the coolant pipes and hoses from the cooling fan shroud.
      • Release the 4 clips and move the cooling fan shroud upwards.
Installation
  1. Install the cooling fan shroud.
      • Secure the coolant pipes and hoses in the cooling fan shroud.
      • Secure in the clips.
  2. Secure the LH turbocharger inlet tube.
      • Tighten the clip.
  3. Install the viscous fan assembly. For additional information, refer to: Cooling Fan (303-03E Engine Cooling - TDV8 3.6L Diesel, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
