2007.0 Range Rover Sport (LS), 303-03E

Engine Cooling - TDV8 3.6L Diesel

Auxiliary Radiator (G940581)

REMOVAL AND INSTALLATION
  • 26.40.09
  • Auxiliary Radiator - Renew
  • TDV8
  • 0.70
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the front RH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  3. E45637
    Remove the front RH splash shield.
      • Remove the 4 clips.
  4. CAUTION:

    Make sure that all openings are sealed. Use new blanking caps.

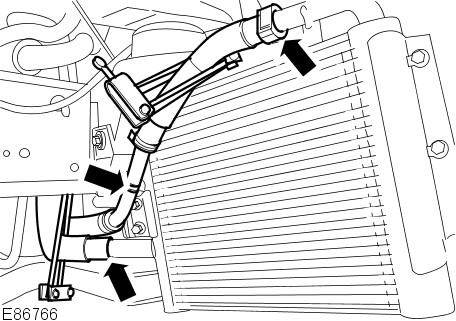

    E86766
    Disconnect the 2 coolant hoses.
      • Clamp the hose to minimize coolant loss.
      • Release the coolant pipe from the clip.
      • Position a container to collect the fluid spillage.

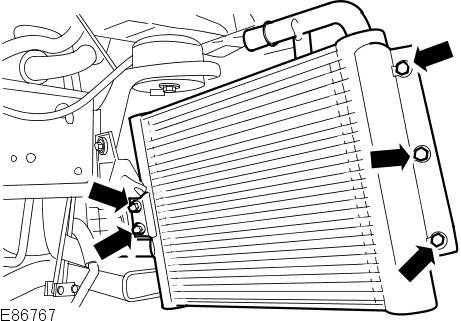

  5. E86767
    Remove the auxiliary radiator.
      • Remove the 5 bolts.
Installation
  1. Install the auxiliary radiator.
      • Tighten the bolts to 20 Nm (15 lb.ft).
  2. NOTE:

    Remove and discard the blanking caps.

    Connect the coolant hoses.
      • Secure the coolant pipe in the clip.
      • Remove the coolant hose clamps.
      • Remove the container.
  3. Install the front RH splash shield.
      • Install the clips.
  4. Install the front RH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  5. Check and top-up the coolant.
