Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-05D

Accessory Drive - TDV8 3.6L Diesel

Accessory Drive Belt Tensioner (G939961)

REMOVAL AND INSTALLATION
  • 86.10.06
  • Accessory Drive Belt Tensioner - Renew
  • TDV8
  • 1.10
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the accessory drive belt. For additional information, refer to: Accessory Drive Belt (303-05D Accessory Drive - TDV8 3.6L Diesel, Removal and Installation).

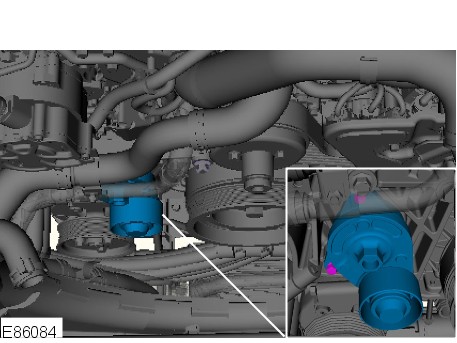

  4. E86084
    Remove the accessory drive belt tensioner.
      • Remove the 2 bolts.
Installation
  1. To install, reverse the removal procedure.
      • Tighten the bolts to 25 Nm (18 lb.ft).
