2007.0 Range Rover Sport (LS), 303-01D

Engine - TDV8 3.6L Diesel

Crankshaft Front Seal (G939421)

IN-VEHICLE REPAIR
  • 12.21.14
  • Crankshaft Front Oil Seal - Renew
  • TDV8
  • 1.60
  • USED WITHINS

Special Tool(s)

E54543

303-1120

Crankshaft Front Seal Remover

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the crankshaft pulley. For additional information, refer to: Crankshaft Pulley (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).

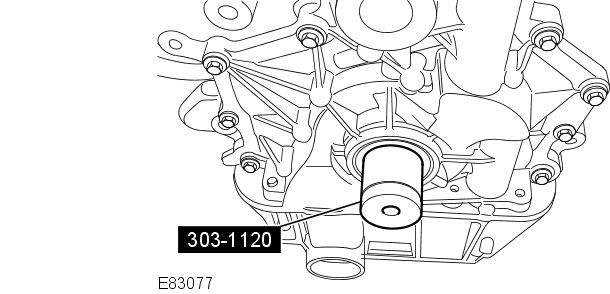

  3. E83077
    Install the special tool to the crankshaft.

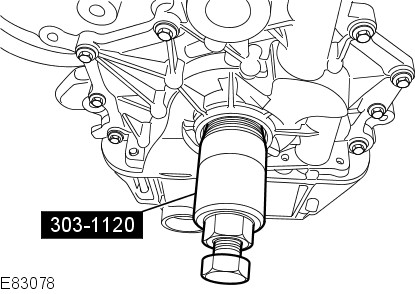

  4. E83078
    Using the special tool, remove the crankshaft front seal.
      • Remove the special tool.
      • Remove and discard the crankshaft front seal from the special tool.
Installation
  1. NOTES:

    • Make sure that the transit sleeve is correctly in place and install the new seal over the crankshaft. Do not use any lubricant on the seal, the transit sleeve or the crankshaft.

    • Make sure that all the component mating faces are clean.

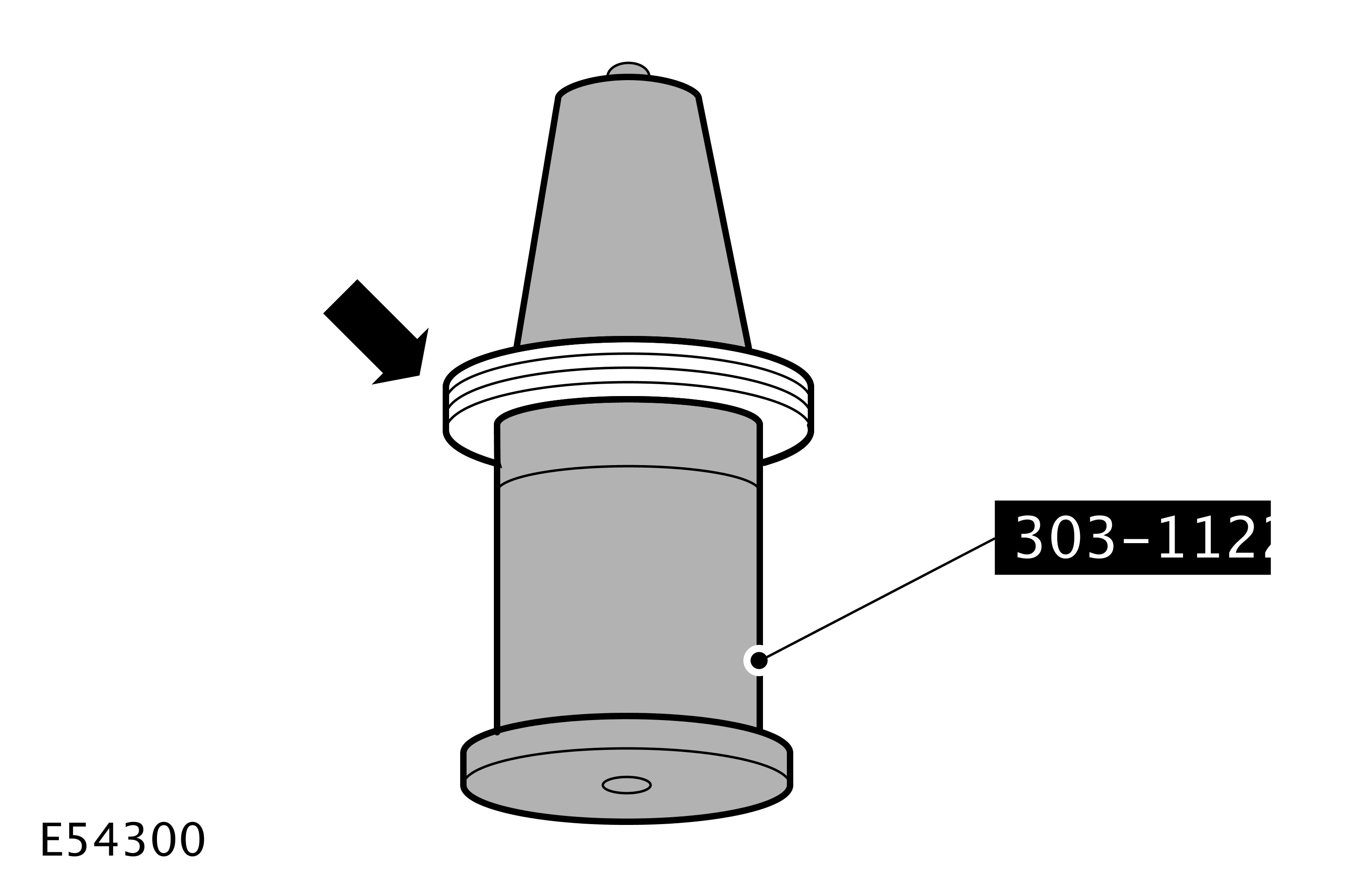

    E54300
    Install a new crankshaft front seal to the special tool.
  2. Remove the sleeve from the special tool.
      • Reposition the crankshaft front seal along the special tool.

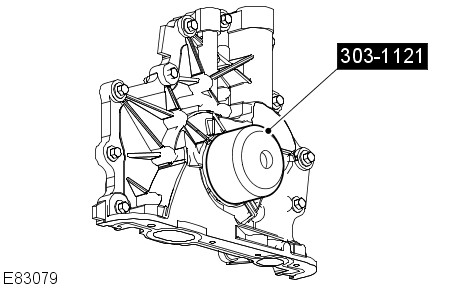

  3. E83079
    Using the special tool, install a new crankshaft front seal.
      • Use the discarded crankshaft bolt with the service tool.
  4. Install the crankshaft pulley. For additional information, refer to: Crankshaft Pulley (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
