Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-14D

Electronic Engine Controls - TDV8 3.6L Diesel

Engine Oil Pressure Sensor (G939414)

REMOVAL AND INSTALLATION
  • 12.60.50
  • Oil Pressure and Temperature Sensor - Renew
  • TDV8
  • 0.50
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the brake vacuum pump. For additional information, refer to: Brake Vacuum Pump - TDV8 3.6L Diesel (206-07 Power Brake Actuation, Removal and Installation).

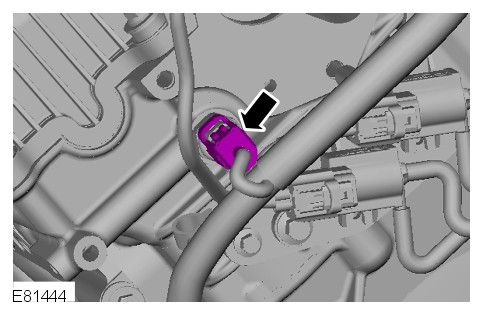

  3. E81444
    Disconnect the engine oil pressure (EOP) sensor electrical connector.

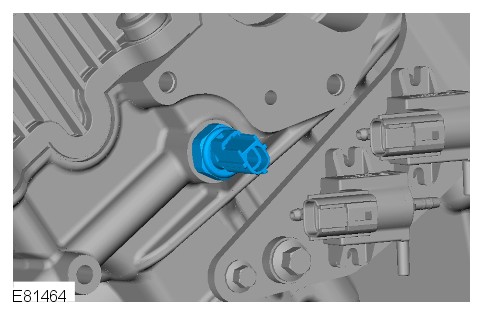

  4. E81464
    Remove the EOP sensor.
Installation
  1. Install the EOP sensor.
      • Tighten the sensor to 15 Nm (11 lb.ft).
  2. Connect the EOP sensor electrical connector.
  3. Install the brake vacuum pump. For additional information, refer to: Brake Vacuum Pump - TDV8 3.6L Diesel (206-07 Power Brake Actuation, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
