Published: 11-May-2011

2007.0 Range Rover Sport (LS), 206-07

Power Brake Actuation

Brake Vacuum Pump - TDV8 3.6L Diesel (G938577)

REMOVAL AND INSTALLATION
  • 70.50.19
  • Vacuum pump - servo - renew
  • TDV8
  • 0.50
  • USED WITHINS
  • 70.55.02
  • Front Brake Caliper - Renew
  • Without Brembo
  • 0.70
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the air cleaner assembly.

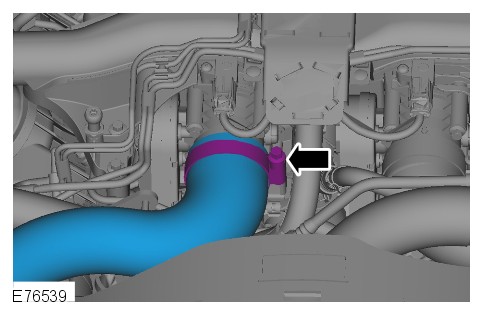

  3. E76539
    Remove the charge air cooler RH outlet hose.
      • Release the 2 clips.

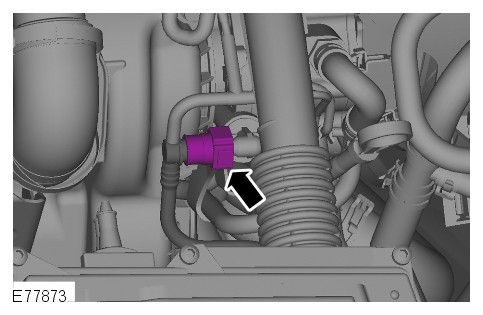

  4. E77873
    Disconnect the brake booster vacuum line from the brake vacuum pump.

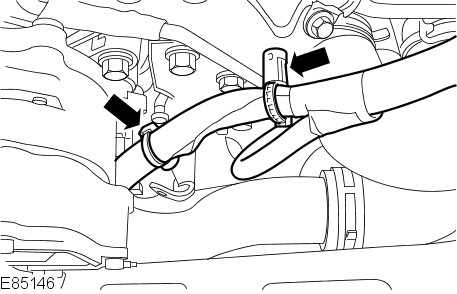

  5. E85146
    Release the engine wiring harness.
      • Release the 2 clips.

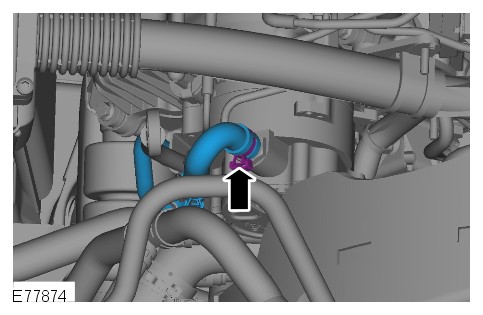

  6. E77874
    Disconnect the engine oil pick-up hose.
      • Release the clip.

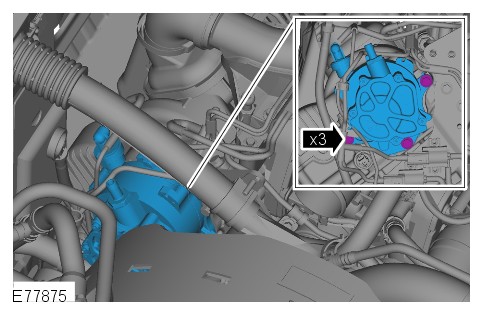

  7. E77875
    Remove the brake vacuum pump.
      • Remove the nut.
      • Remove the stud.
      • Remove the 2 bolts.
      • Remove and discard the gasket.
Installation
  1. CAUTION:

    Make sure that the mating faces are clean and free of foreign material.

    Install the brake vacuum pump.
      • Install a new gasket.
      • Tighten the stud to 10 Nm (7 lb.ft).
      • Tighten the nut to 23 Nm (17 lb.ft).
      • Tighten the bolts to 23 Nm (17 lb.ft).
  2. Connect the engine oil pick-up hose.
      • Secure with the clip.
  3. Secure the engine wiring harness.
      • Secure the clips.
  4. Connect the brake booster vacuum line to the brake vacuum pump.
  5. Install the charge air cooler RH outlet hose.
      • Secure with the clips.
  6. Install the air cleaner assembly.
  7. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
