Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-14D

Electronic Engine Controls - TDV8 3.6L Diesel

Engine Coolant Temperature Sensor (G939413)

REMOVAL AND INSTALLATION
  • 18.30.10
  • Engine Cooling Temperature Sensor - Renew
  • TDV8
  • 1.10
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the cooling fan assembly. For additional information, refer to: Cooling Fan (303-03E Engine Cooling - TDV8 3.6L Diesel, Removal and Installation).
  4. E78967
    Disconnect the upper coolant hose from the coolant distribution manifold.
      • Release the clip.
  5. E78968
    Disconnect the engine coolant temperature (ECT) sensor electrical connector.

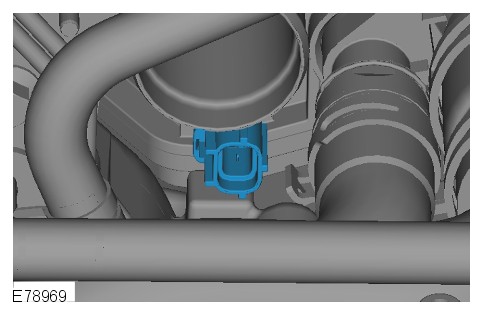

  6. E78969
    Remove the ECT sensor.
      • Remove and discard the clip.
      • Remove and discard the O-ring seal.
Installation
  1. NOTE:

    Lubricate the O-ring seal with clean coolant.

    Install the ECT sensor.
      • Install a new O-ring seal.
      • Install a new clip.
  2. Connect the ECT sensor electrical connector.
  3. Connect the upper coolant hose to the coolant distribution manifold.
      • Secure the clip.
  4. Install the cooling fan assembly. For additional information, refer to: Cooling Fan (303-03E Engine Cooling - TDV8 3.6L Diesel, Removal and Installation).
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
