Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-06D

Starting System - TDV8 3.6L Diesel

Starter Motor (G939310)

REMOVAL AND INSTALLATION
  • 86.60.01
  • Starter Motor - Renew
  • TDV8
  • 1.80
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the engine RH mount. For additional information, refer to: Right Engine Mount (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).

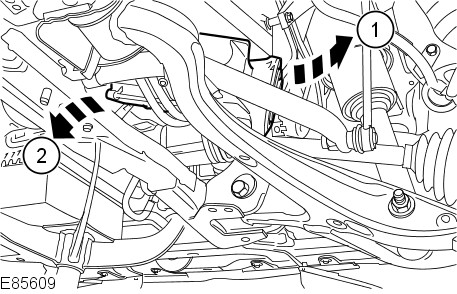

  3. E85609
    Remove the starter motor.
Installation
  1. Install the starter motor.
  2. Install the RH engine mount. For additional information, refer to: Right Engine Mount (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
