Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-01D

Engine - TDV8 3.6L Diesel

Right Valve Cover (G938657)

IN-VEHICLE REPAIR
  • 12.29.44
  • Camshaft Cover - Right - Renew
  • TDV8
  • 4.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the RH bank fuel injectors. For additional information, refer to: Right Fuel Injectors (303-04D Fuel Charging and Controls - TDV8 3.6L Diesel, Removal and Installation).
  3. Remove the brake vacuum pump. For additional information, refer to: Brake Vacuum Pump - TDV8 3.6L Diesel (206-07 Power Brake Actuation, Removal and Installation).
  4. Remove the intake manifold plenum chamber. For additional information, refer to: Intake Manifold Plenum Chamber (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).

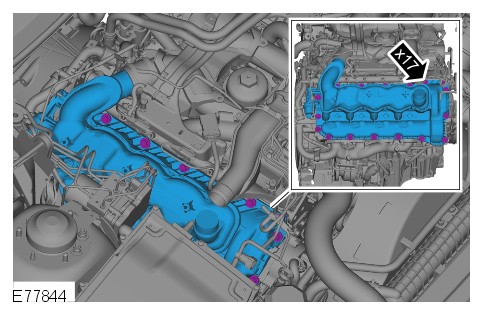

  5. E77844
    Remove the valve cover.
      • Fully loosen the 17 bolts.
      • Remove and discard the gasket.
  6. NOTES:

    • Do not disassemble further if the component is removed for access only.

    • Left-hand shown, right-hand similar.

    E77848
    Remove the intake manifold plenum chamber tuning valve.
      • Remove the 2 screws.
      • Release the actuator rod.
Installation
  1. Install the intake manifold plenum chamber tuning valve.
      • Secure the actuator rod.
      • Tighten the screws to 3 Nm (2 lb.ft).
  2. CAUTION:

    Tighten the bolts in the sequence shown.

    E80513
    Install the valve cover.
      • Install a new gasket.
      • Install the special tool.
      • Tighten the bolts to 10 Nm (7 lb.ft).
      • Remove the special tool.
  3. Install the intake manifold plenum chamber. For additional information, refer to: Intake Manifold Plenum Chamber (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  4. Install the brake vacuum pump. For additional information, refer to: Brake Vacuum Pump - TDV8 3.6L Diesel (206-07 Power Brake Actuation, Removal and Installation).
  5. Install the RH bank fuel injectors. For additional information, refer to: Right Fuel Injectors (303-04D Fuel Charging and Controls - TDV8 3.6L Diesel, Removal and Installation).
  6. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
