Published: 11-May-2011

2007.0 Range Rover Sport (LS), 309-00D

Exhaust System - TDV8 3.6L Diesel (G938543)

REMOVAL AND INSTALLATION
  • 30.10.08
  • Exhaust system & mountings - renew
  • TDV8
  • 1.50
  • USED WITHINS
Removal
WARNING:

Observe due care when working near a hot exhaust system.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the transmission support crossmember. For additional information, refer to: Transmission Support Crossmember (502-02 Full Frame and Body Mounting, Removal and Installation).
  3. NOTE:

    Right-hand shown, left-hand similar.

    E77147
    Release the exhaust system from the turbochargers.
      • Remove the 6 bolts.
      • Remove and discard the 2 gaskets.

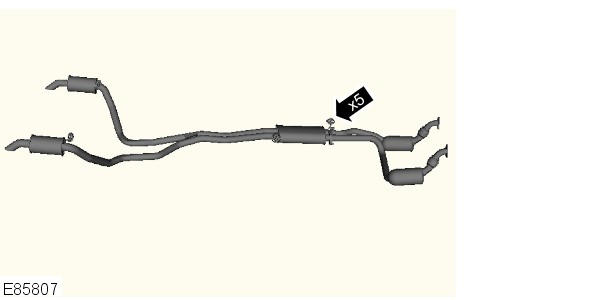

  4. E85807
    With assistance, remove the exhaust system.
      • Release the 5 exhaust hangers.
Installation
  1. With assistance, install the exhaust system.
      • Secure the exhaust hangers.
  2. CAUTION:

    Make sure that the mating faces are clean and free of corrosion and foreign material.

    Secure the LH and RH catalytic converters to the turbochargers.
      • Install new gaskets.
      • Tighten the bolts to 21 Nm (15 lb.ft).
  3. Install the transmission support crossmember. For additional information, refer to: Transmission Support Crossmember (502-02 Full Frame and Body Mounting, Removal and Installation).
