Published: 11-May-2011

2007.0 Range Rover Sport (LS), 307-05D

Automatic Transmission/Transaxle External Controls - TDV8 3.6L Diesel

Selector Lever Position Sensor (G896629)

REMOVAL AND INSTALLATION
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).

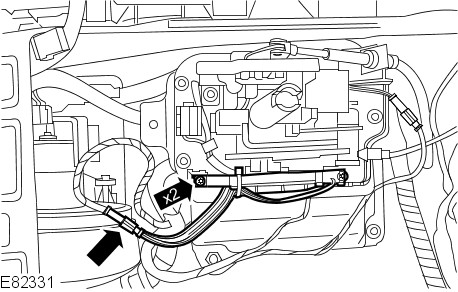

  3. E82331
    Remove the selector lever position sensor.
      • Disconnect the electrical connector.
      • Remove the 2 screws.
Installation
  1. Install the selector lever position sensor.
      • Install the 2 screws.
      • Connect the electrical connector.
  2. Install the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
