2007.0 Range Rover Sport (LS), 211-02

Power Steering

Power Steering Pump to Steering Gear Pressure Line (G836536)

REMOVAL AND INSTALLATION
Removal
  1. Raise and support the vehicle.

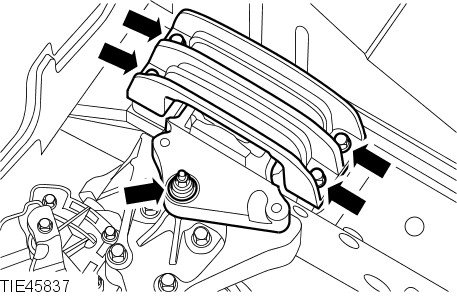

  2. E45837
    Remove the front RH splash shield.
      • Remove the 4 clips.
  3. Remove the front LH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

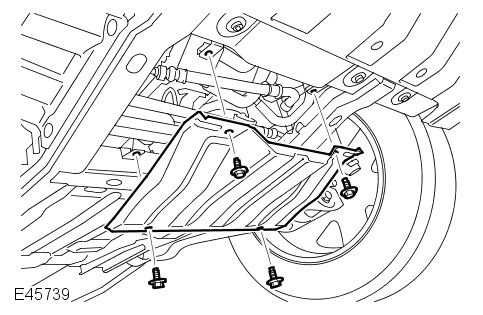

  4. E45739
    Remove the radiator access panel.
      • Remove the 4 bolts.
  5. CAUTION:

    Always plug any open connections to prevent contamination.

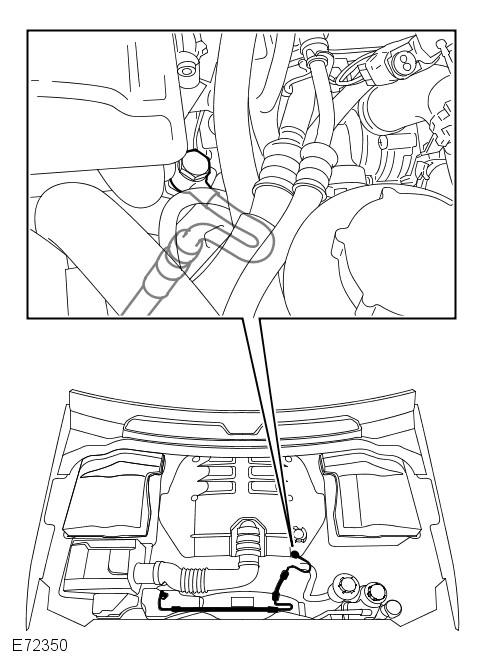

    E72350
    Disconnect the high pressure line from the power steering pump.
      • Loosen and release the power steering pump line.
      • Allow the fluid to drain into a container.
      • Remove and discard the 2 sealing washers.

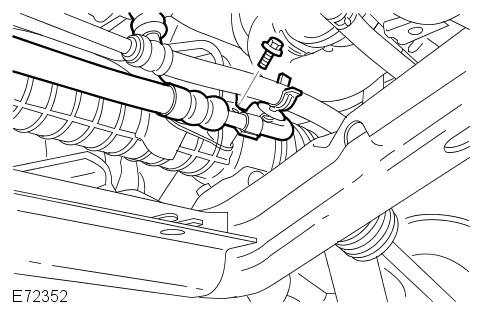

  6. E72352
    Release the power steering line support bracket.
      • Remove the nut.
      • Release the hose.

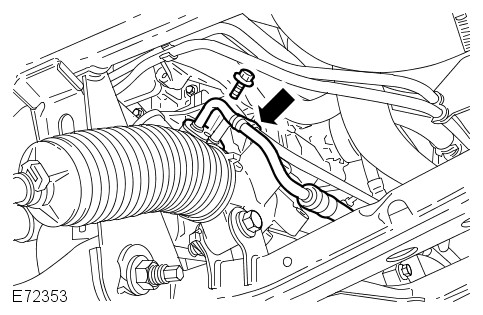

  7. E72353
    Disconnect the high pressure line from the power steering gear.
      • Remove the bolt.
      • Release the power steering gear line.
      • Remove and discard the O-ring seal.
  8. Remove the steering gear high-pressure line.
Installation
  1. Install the steering gear high-pressure line.
  2. Connect the high-pressure line to the power steering gear.
      • Install the O-ring seal.
      • Attach the power steering gear high-pressure line.
      • Tighten the bolt to 25 Nm (18 lb.ft).
  3. Install the power steering line support bracket.
      • Tighten the nut to 10 Nm (7 lb.ft).
      • Secure the hose with the clip.
  4. CAUTION:

    Always plug any open connections to prevent contamination.

    Connect the high-pressure line to the power steering pump.
      • Install new sealing washers.
      • Connect the power steering pump high-pressure line.
  5. Install the radiator access panel.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  6. Install the front LH fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  7. Install the front RH splash shield.
      • Secure with the clips.
  8. Fill and bleed the power steering system. For additional information, refer to: Power Steering System Filling and Bleeding (211-00 Steering System - General Information, General Procedures).
