2007.0 Range Rover Sport (LS), 419-08

Cellular Phone

Transceiver Module (G836247)

REMOVAL AND INSTALLATION
  • 86.53.12
  • Telephone - ECU - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Remove the RH lower rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. CAUTION:

    Cover fibre optic cable connectors to minimise dust ingress and avoid bending the cables in a radius of less than 30 mm.

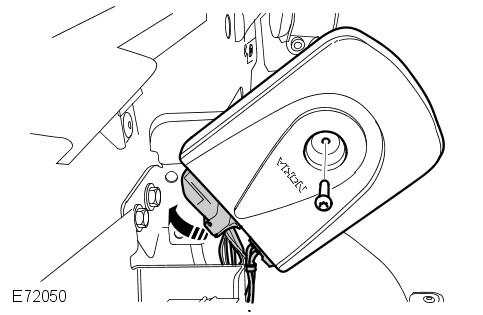

    E72050
    Remove the cellular phone module.
      • Remove the Torx bolt.
      • Disconnect the 2 electrical connectors.
Installation
  1. Install the cellular phone module.
      • Connect the electrical connectors.
      • Tighten the Torx bolt to 10 Nm (7 lb.ft).
  2. Install the RH lower rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  3. Using WDS, configure a new module.
