Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-20B

Supplementary Restraint System

Side Airbag Module (G551861)

REMOVAL AND INSTALLATION
  • 76.74.31
  • Air bag - side impact - front seat - drivers - renew
  • All Derivatives
  • 1.20
  • USED WITHINS
Removal
WARNINGS:

  • It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

  • Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

  1. Make the SRS system safe. For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  2. Remove the front seat backrest cover. For additional information, refer to: Front Row Seat Backrest Cover (501-10 Seating, Removal and Installation).

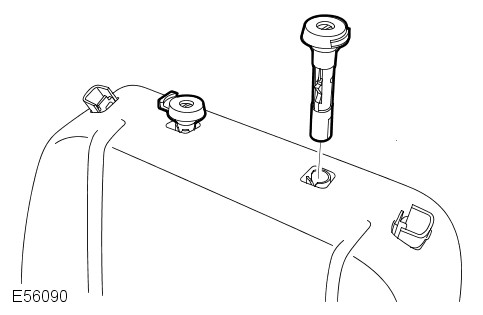

  3. E56090
    Remove the front seat backrest pad.
      • Remove the front seat head restraint retaining clips.
  4. NOTE:

    If the SRS component is to be replaced, the bar code of the new unit must be recorded.

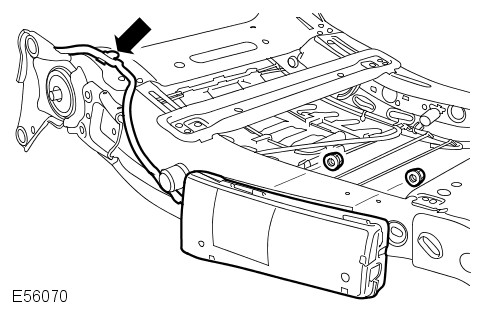

    E56070
    Remove the side air bag module.
      • Release the side air bag module harness.
      • Remove the 2 nuts.
Installation
  1. Install the side air bag module.
      • Tighten the nuts to 10 Nm (7 lb.ft).
      • Attach the wiring harness.
  2. Install the front seat backrest pad.
      • Install the front seat head restraint retaining clips.
  3. Install the front seat backrest cover. For additional information, refer to: Front Row Seat Backrest Cover (501-10 Seating, Removal and Installation).
