Published: 11-May-2011

2007.0 Range Rover Sport (LS), 206-05

Parking Brake and Actuation

Right Parking Brake Cable (G530732)

REMOVAL AND INSTALLATION
Removal
CAUTION:

To avoid accidental operation of the parking brake, and possible damage to the parking brake actuator, remove Fusible link 8, located in the engine compartment fuse box before commencing work.

NOTE:

If the parking brake system has completed less than 50,000 cycles it is permissible to replace the parking brake cables. If over 50,000 cycles have been completed, then the cables can only replaced as part of the parking brake actuator and cable assembly. The parking brake cycle count can be checked using using the Land Rover approved diagnostic system, (ON/OFF = 1 cycle). If a cable breaks or becomes detached whilst the vehicle is being driven, a 'parking brake actuator unjaming procedure' may be required using the Land Rover approved diagnostic system.

  1. Using the Land Rover approved diagnostic system, drive the parking brake to the 'mounting position'.
  2. Isolate the parking brake electrical circuit.
      • Remove fuse number 8 from the BJB.
  3. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  4. Remove the wheels and tires.
  5. E48749
    Release the parking brake shoe adjustment.
      • Loosen the screw.
  6. CAUTION:

    Do not allow the brake caliper to hang on the brake hose.

    E93861
    Reposition the RH rear brake caliper.
      • Remove the 2 bolts.
      • Using a suitable tie strap, support the brake caliper.
  7. E43893
    Remove the RH rear brake disc.
      • Remove the screw.
  8. E49623
    Disconnect parking brake cable from the wheel hub.
      • Fully loosen the nut.
      • Release the cable from the lower arm.
      • Disconnect the inner cable from the brake shoe.
  9. CAUTION:

    The fuel tank breather line bracket can be easily damaged when releasing it from the chassis.

    E93839
    Release the fuel tank breather line bracket.
      • Remove the plastic insert.
  10. E49859
    Release the RH parking brake cable.
      • Remove the 2 bolts.
      • Release the parking brake cable from the 2 pipe clips.
      • Release the cable from the clip on the chassis.
  11. E49940
    Release the RH parking brake cable.
  12. CAUTION:

    Make sure that no dirt or moisture enters the actuator during cable replacement.

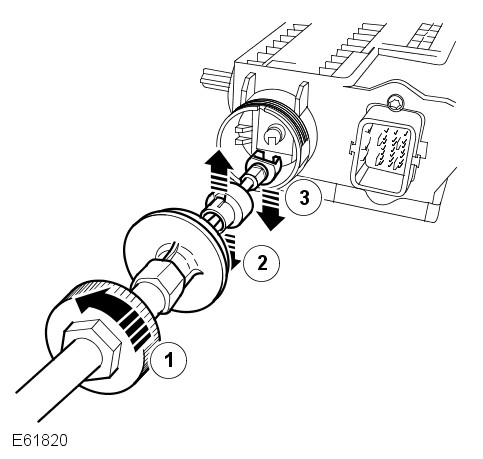

    E61820
    Remove the RH parking brake cable.
      • Release the retaining nut.
      • Release the cable retaining clip.
      • Release and remove the cable.
Installation
  1. Install the RH parking brake cable.
      • Install the cable.
      • Install the cable retaining clip.
      • Tighten the retaining nut.
  2. Secure the fuel tank breather line bracket.
      • Install the plastic insert.
  3. Locate and secure the RH parking brake cable.
      • Tighten the bolts to 22 Nm (16 lb.ft).
      • Secure the parking brake cable to the 2 pipe clips.
      • Secure the cable grommet to the integrated body frame bracket.
  4. NOTE:

    Make sure that the brake cable circlip is positioned as shown.

    E100248
    Connect the parking brake cable to the wheel hub.
      • Connect the cable to the brake shoe lever.
      • Locate the cable to the backplate.
      • Tighten the nut to 8 Nm (6 lb.ft).
  5. CAUTION:

    Make sure that the component is clean, free of foreign material and lubricant.

    Install the RH rear brake disc.
      • Tighten the Torx screw to 35 Nm (26 lb.ft).
  6. Secure the RH rear brake caliper.
      • Remove and discard the tie strap.
      • Tighten the bolts to 115 Nm (85 lb.ft).
  7. NOTE:

    The adjustment procedure must be carried out in full.

    Adjust the parking brake shoes. For additional information, refer to: Parking Brake Shoe and Lining Adjustment (206-05 Parking Brake and Actuation, General Procedures).
  8. Install the rear wheels and tires.
      • Tighten the wheel nuts to 140 Nm (103 lb.ft).
  9. Install fuse number 8 into the BJB.
