Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-12

Instrument Panel and Console

Cool Box (G504833)

REMOVAL AND INSTALLATION
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).

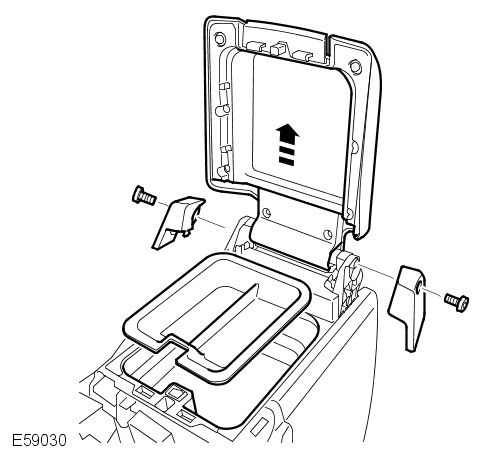

  3. E59030
    Remove the floor console lid.
      • Open the lid.
      • Remove the 2 Torx bolts.
      • Remove the 2 covers.

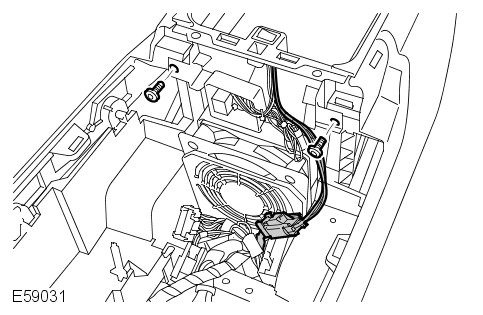

  4. E59031
    Remove the floor console cool box.
      • Remove the 2 Torx screws.
      • Disconnect the electrical connector.
Installation
  1. Install the floor console cool box.
      • Connect the electrical connector.
      • Tighten the screws.
  2. Install the floor console lid.
      • Install the covers.
      • Tighten the Torx bolts to 3 Nm (2 lb.ft).
  3. Install the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
