Published: 11-May-2011

2007.0 Range Rover Sport (LS), 204-06

Ride and Handling Optimization

Dynamic Response Module (G458143)

REMOVAL AND INSTALLATION
  • 60.60.01
  • Control unit - active cornering enhancement (ACE) - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
  • 60.60.50
  • Anti roll bar - ACE - front - renew
  • TDV8
  • 3.10
  • USED WITHINS
Removal
NOTE:

The dynamic response module is always located on the driver's side of the vehicle.

  1. Remove the cowl side trim panel. For additional information, refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. E47923
    Remove the closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.

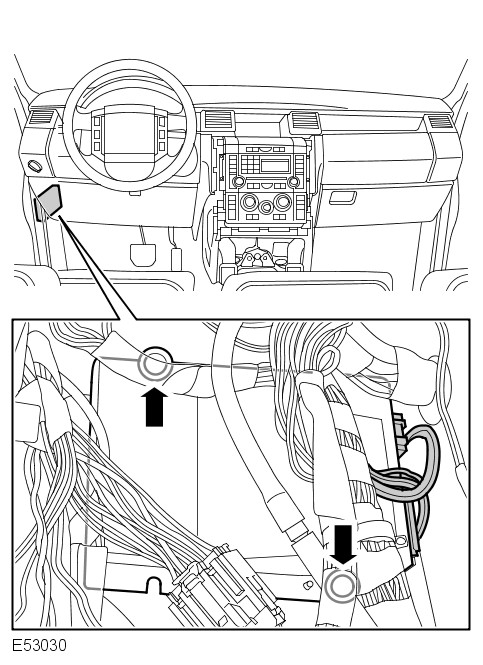

  3. E53030
    Remove the dynamic response module.
      • Remove the 2 bolts.
      • Disconnect the 2 electrical connectors.
Installation
  1. Install the dynamic response module.
      • Connect the electrical connectors.
      • Tighten the 2 bolts to 4 Nm (3 lb.ft).
  2. Install the closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.
  3. Install the cowl side trim panel. For additional information, refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  4. Initiate a new control module using T4.
