2007.0 Range Rover Sport (LS), 501-27

Front End Sheet Metal Repairs

Fender Apron Panel Closing Panel (G458110)

REMOVAL AND INSTALLATION
Removal
NOTE:

In this procedure the fender apron closing panel is replaced in conjunction with the fender apron panel and/or the fender apron panel reinforcement.

  1. Disconnect both battery cables. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the fender apron panel. For additional information, refer to: Fender Apron Panel (501-27 Front End Sheet Metal Repairs, Removal and Installation).
  3. Remove the fender apron panel reinforcement. For additional information, refer to: Fender Apron Panel Reinforcement (501-27 Front End Sheet Metal Repairs, Removal and Installation).

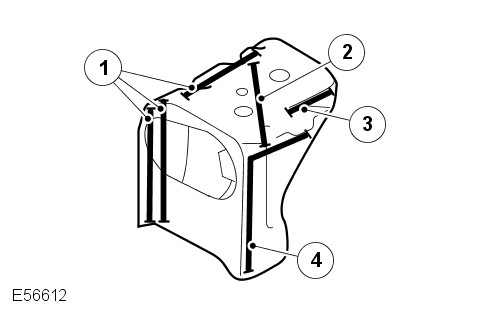

  4. E56612

    ItemDescription
    17 plug welds.
    22 spot welds.
    32 spot welds.
    45 plug welds.
  5. For additional information:
      • Welding. For additional information, refer to: Body Repairs (501-25A Body Repairs - General Information -, Description and Operation).Corrosion protection. For additional information, refer to: Corrosion Protection (501-25B Body Repairs - Corrosion Protection -, Description and Operation).Tolerance checks. For additional information, refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
Installation
  1. Install is the reversal of removal.
