2007.0 Range Rover Sport (LS), 501-11

Glass, Frames and Mechanisms

Rear Door Fixed Window Glass (G455427)

REMOVAL AND INSTALLATION
  • 76.31.31
  • Rear Door Fixed Window - Renew
  • All Derivatives
  • 0.90
  • USED WITHINS
Removal
  1. Remove the rear door window motor and regulator assembly. For additional information, refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
  2. Lower the rear door glass to the bottom of the door.
      • Remove the wedge.

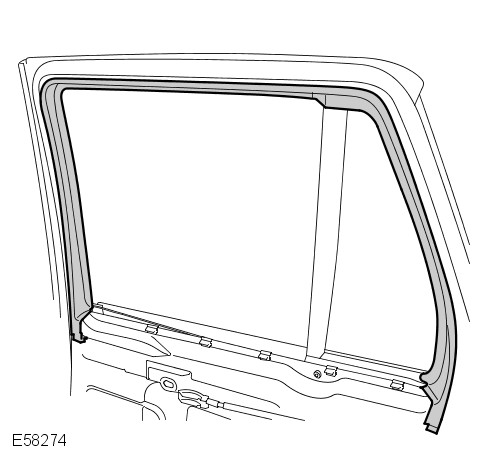

  3. E58274
    Remove the rear door frame trim.
      • Carefully release the adhesive strip.
  4. E58263
    Carefully remove the inner waist seal.

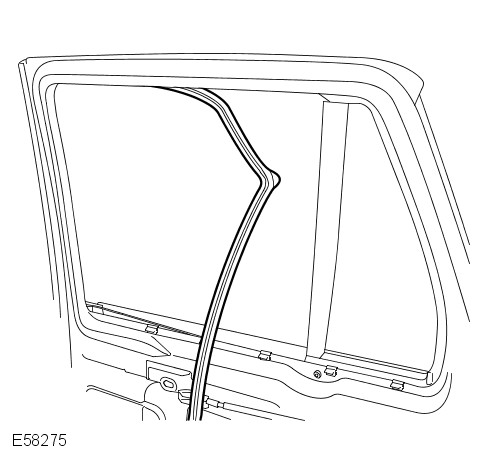

  5. E58275
    Release the lining from the glass rear guide channel.

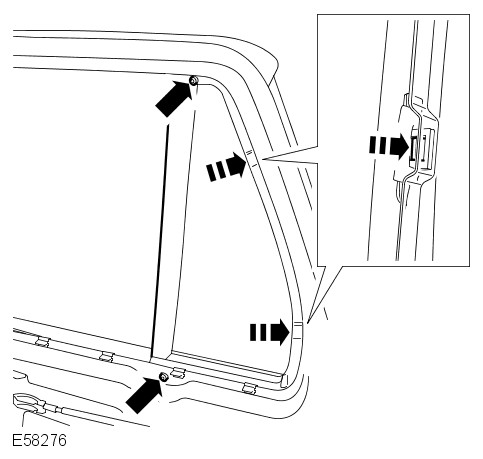

  6. E58276
    Remove the rear door window fixed glass.
      • Remove the 2 Torx screws.
      • Release the 2 clips.
Installation
  1. Install the rear door window fixed glass.
      • Clean the component mating faces.
      • Secure the 2 clips.
      • Tighten the Torx screws to 10 Nm (7 lb.ft).
  2. Install the guide channel lining.
  3. Install the inner waist seal.
  4. Install the door frame trim.
      • Clean the component mating faces.
      • Remove backing tape from adhesive strip.
  5. NOTE:

    Wedge the glass in this position.

    Raise the rear door glass fully.
      • Engage the door glass with the channel.
  6. Install the rear door window motor and regulator assembly. For additional information, refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
