Published: 16-Aug-2016

2007.0 Range Rover Sport (LS), 204-05

Vehicle Dynamic Suspension

Suspension Height Sensor (G455253)

REMOVAL AND INSTALLATION
  • 60.36.01
  • Sensor - height - front - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
NOTES:

  • The rear height sensors are handed. The right hand sensor has a black colored lever and the left hand sensor has a white colored lever. The front height sensors are not handed, and are fitted with grey levers for identification.

  • This procedure covers removal and installation of both the front and rear suspension height sensors.

  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. CAUTION:

    Do not use excessive force to disconnect the height sensor link.

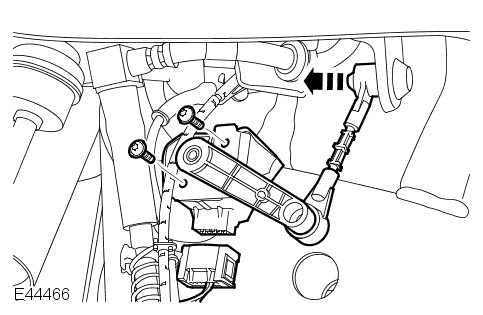

    E44466
    Remove the suspension height sensor.
      • Disconnect the height sensor link.
      • Disconnect the electrical connector.
      • Remove the 2 Torx screws.
  3. Inspect the condition of the suspension height sensor wiring harness. Rectify any concerns, if required.For additional information, refer to: Wiring Harness (418-02 Wiring Harnesses, Description and Operation).
Installation
  1. CAUTION:

    Make sure the Torx screw is not over tightened. Failure to follow this instruction will result in damage to the vehicle.

    To install, reverse the removal procedure.
      • Tighten the screws to 3 Nm (2 lb.ft).
  2. Using Land Rover approved diagnostic equipment, calibrate the ride hight.
