Published: 08-Nov-2013

2007.0 Range Rover Sport (LS), 308-07A

Four-Wheel Drive Systems

High/Low Range Sensor (G455060)

REMOVAL AND INSTALLATION
  • 41.30.07
  • Sensor - position - hi/low ratio - renew
  • TDV8
  • 0.60
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the crossmember. For additional information, refer to: Transmission Support Crossmember (502-02 Full Frame and Body Mounting, Removal and Installation).
  3. CAUTIONS:

    • To avoid damage to the joints or gaiters, do not allow the transmission to hang on the driveshafts.

    • Discard the bolts.

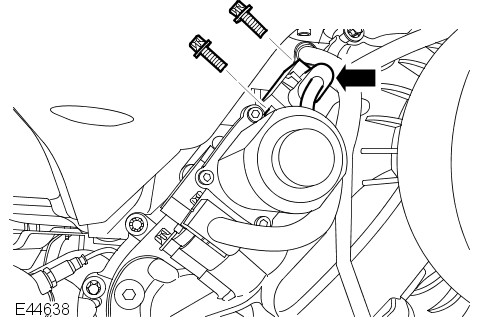

    E44638
    Remove the mode sensor.
      • Lower the rear of the transmission for access.
      • Disconnect the electrical connector.
      • Remove the 2 Torx bolts.
Installation
  1. CAUTION:

    Make sure that new bolts are installed.

    To install, reverse the removal procedure.
      • Clean the components.
      • Tighten the Torx bolts to 5 Nm (4 lb.ft).
  2. Install the crossmember. For additional information, refer to: Transmission Support Crossmember (502-02 Full Frame and Body Mounting, Removal and Installation).
  3. Connect the Land Rover approved diagnostic equipment.
    1. Start the service function transfer case-absolute position sensor replacement.
    2. Clear any Diagnostic Trouble codes (DTCs) after calibration and check for correct operation.
