Published: 11-May-2011

2007.0 Range Rover Sport (LS), 415-03

Speakers

Front Door Speaker (G451234)

REMOVAL AND INSTALLATION
  • 86.50.10
  • Speaker - front door - renew
  • All Derivatives
  • 0.40
  • USED WITHINS
Removal
  1. Remove the front door trim panel. For additional information, refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

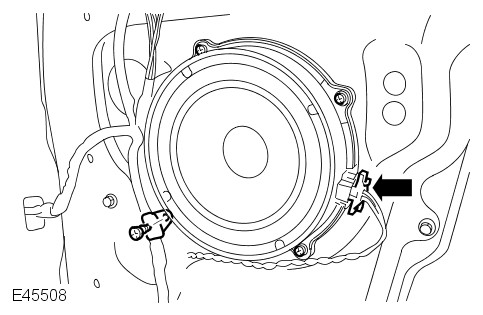

  2. E45508
    Remove the speaker.
      • Disconnect the electrical connector.
      • Remove the 4 screws.
Installation
  1. Install the speaker
      • Align the door wiring harness clip.
      • Tighten the screws.
      • Connect the electrical connector.
  2. Install the front door trim panel. For additional information, refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
