2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

Front Door Trim Panel (G427018)

REMOVAL AND INSTALLATION
  • 76.34.01
  • Front Door Trim Panel - Renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. E57060
    Remove the cheater panel.
      • Carefully release the 3 clips.
      • Disconnect the 2 electrical connectors.
  2. E57064
    Starting at the lower edge, carefully remove the grab handle cover.
      • Release the 3 clips.

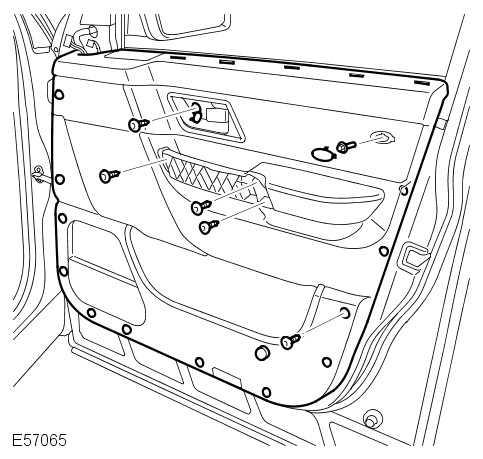

  3. E57065
    Release the front door trim panel.
      • Release the 2 screw covers.
      • Remove the 5 screws.
      • Release the 16 clips.
  4. E43314

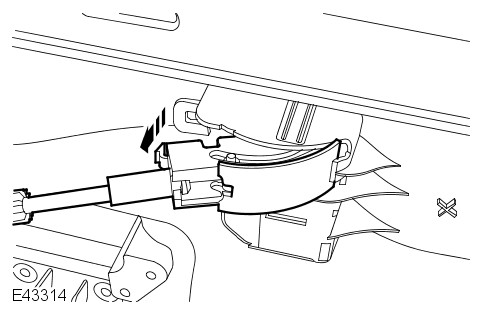

    Disconnect the door latch remote release cable.
  5. E57067

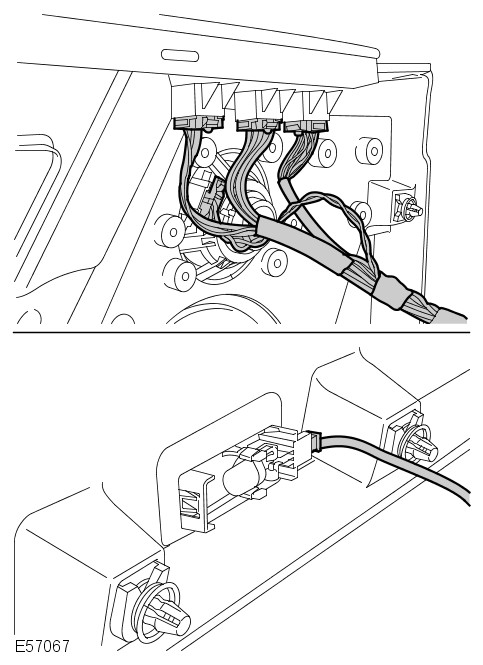

    Remove the front door trim panel.
      • Disconnect the 5 electrical connectors.
  6. NOTE:

    Do not disassemble further if the component is removed for access only.

    E57069

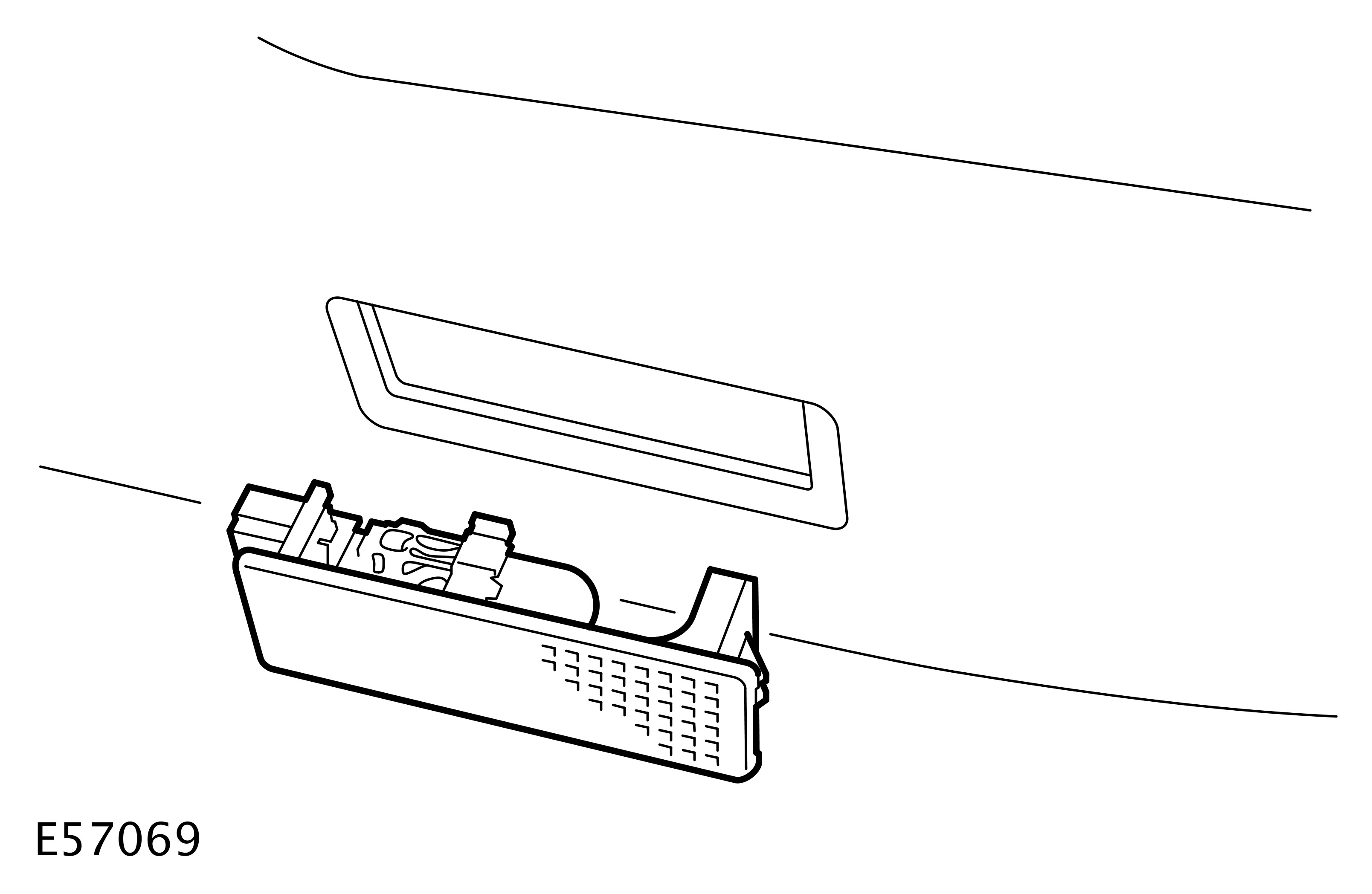

    Remove the puddle lamp.
      • Carefully release the lamp.
  7. E45348

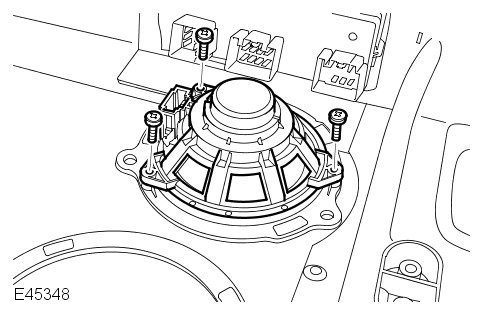

    Remove the speaker.
      • Remove the 3 Torx screws.
  8. E48416

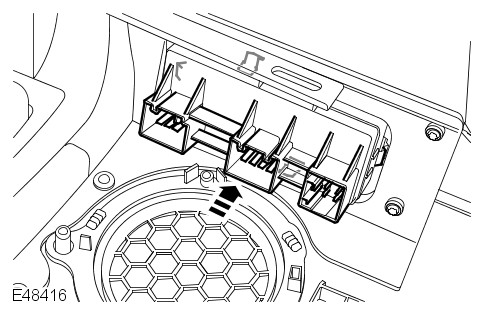

    Remove the window control switch.
      • Carefully release the 4 clips.
  9. E53320

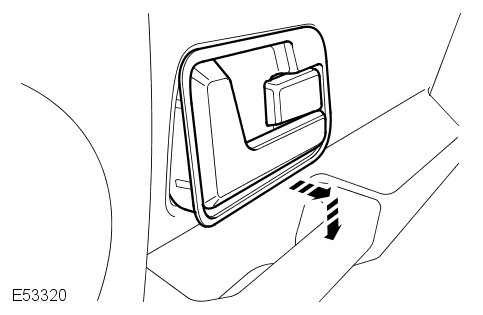

    Remove the front door latch remote control handle.
      • Starting at the lower edge, carefully release the remote handle.
  10. Remove the trim panel finisher.
  11. Remove the door panel finisher retainer.
  12. E60565

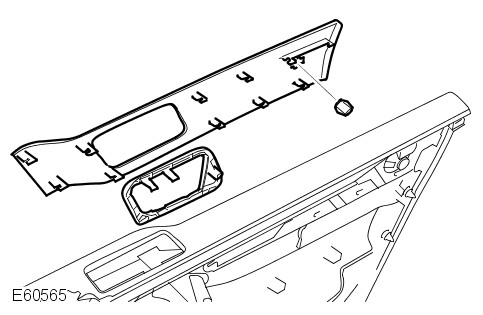

    Remove the door latch remote control handle retainer.
  13. E57072

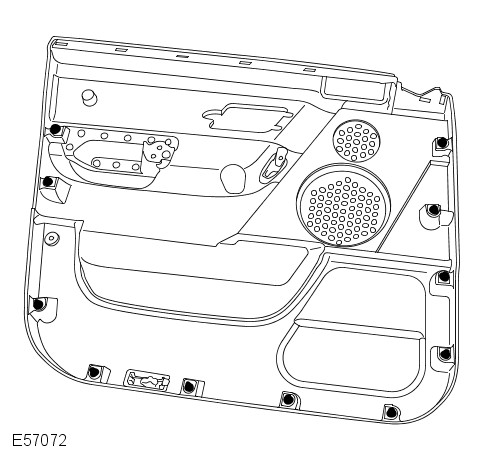

    Remove the 11 clips.
Installation
  1. Install the clips.
  2. Install the door latch remote control handle retainer.
  3. Install the door panel finisher retainer.
  4. Install the trim panel finisher.
  5. Install the front door latch remote control handle.
  6. Install the window control switch.
  7. Install the speaker
      • Tighten the Torx screws.
  8. Install the puddle lamp.
  9. Install the front door trim panel.
      • Connect the door latch remote control cable.
      • Connect the electrical connectors.
      • Secure with the clips.
      • Tighten the screws.
      • Install the screw covers.
  10. Install the grab handle cover.
  11. Install the cheater panel.
      • Connect the electrical connectors.
      • Secure the clips.
