Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-20B

Supplementary Restraint System

Front Impact Severity Sensor (G450997)

REMOVAL AND INSTALLATION
  • 76.74.08
  • Crash sensor(s) - air bag - front - LH/each - renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
WARNINGS:

  • It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

  • Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

NOTE:

If the SRS component is to be replaced, the bar code of the new unit must be recorded.

  1. Make the SRS system safe. For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  2. Remove the headlamp assembly. For additional information, refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

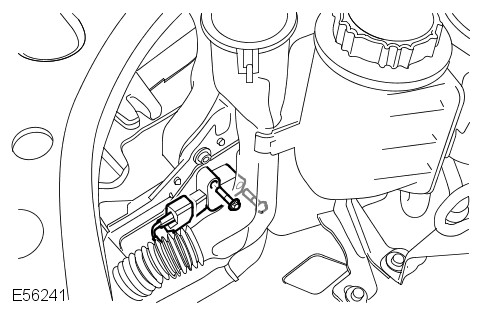

  3. E56241
    Remove the front impact severity sensor.
      • Disconnect the electrical connector.
      • Remove the 2 Torx bolts.
Installation
  1. Install the front impact severity sensor.
      • Tighten the Torx bolts to 8 Nm (6 lb.ft).
      • Connect the electrical connector.
  2. Install the headlamp assembly. For additional information, refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).
