Published: 11-May-2011

2007.0 Range Rover Sport (LS), 419-07

Navigation System

Navigation System Compact Disc (CD) Unit (G448496)

REMOVAL AND INSTALLATION
  • 86.53.01
  • Computer - navigation - renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Make the SRS system safe. For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  3. Remove the LH front seat. For additional information, refer to: Front Seat (501-10, Removal and Installation).

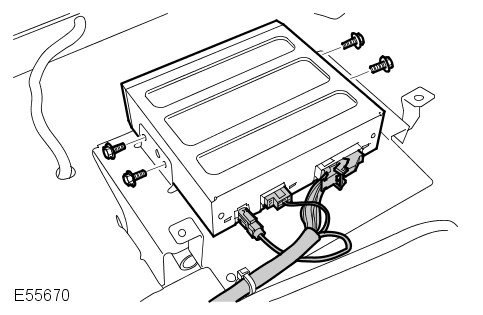

  4. E55670
    Remove the CD unit.
      • Remove the 4 bolts.
      • Disconnect the antenna cable.
      • Disconnect the 2 electrical connectors.
Installation
  1. Install the CD unit.
      • Tighten the bolts to 6 Nm (4 lb.ft).
      • Connect the electrical connectors.
      • Connect the antenna cable.
  2. Install the LH front seat. For additional information, refer to: Front Seat (501-10, Removal and Installation).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
