2007.0 Range Rover Sport (LS), 501-03

Body Closures

Fuel Filler Interlock Catch (G427989)

REMOVAL AND INSTALLATION
  • 19.55.17
  • Solenoid/motor - fuel filler flap release - renew
  • All Derivatives
  • 0.40
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the LH lower rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

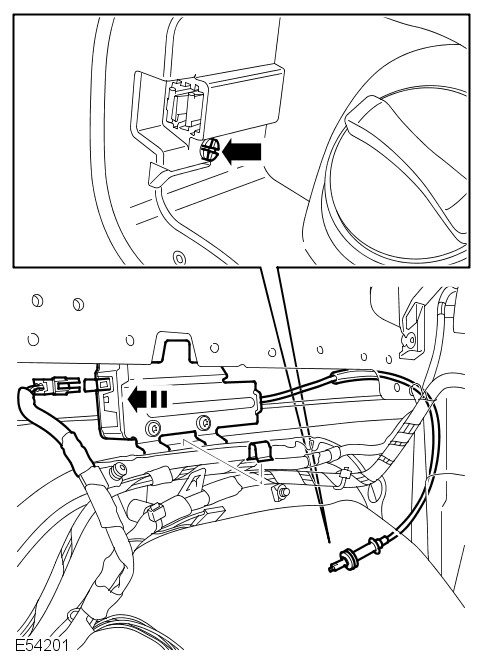

  3. E54201
    Remove the fuel filler interlock catch assembly.
      • Remove the clip.
      • Release the cable.
      • Disconnect the electrical connector.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

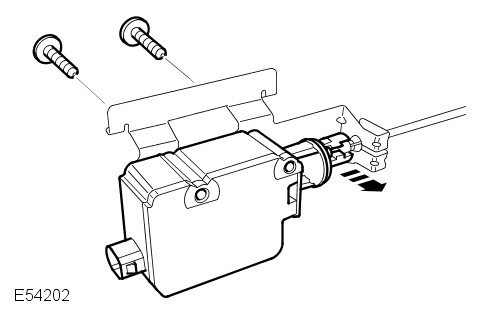

    E54202
    Remove the solenoid.
      • Remove the 2 Torx screws.
      • Release the cable.

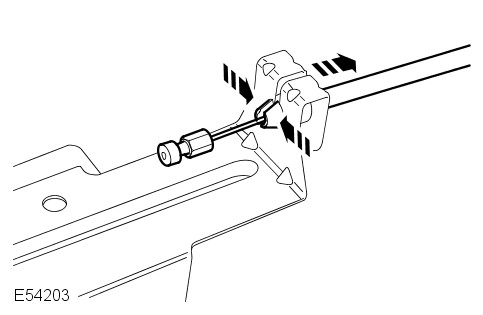

  5. E54203
    Release and remove the cable.
      • Release the clip.
Installation
  1. Install the cable.
      • Secure the clip.
  2. Install the solenoid.
      • Attach the cable.
      • Install the Torx screws.
  3. Install the fuel filler flap latch assembly.
      • Connect and secure the electrical connector.
      • Carefully secure the clips.
  4. Install the rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
