Published: 11-May-2011

2007.0 Range Rover Sport (LS), 415-03

Speakers (G427241)

DESCRIPTION AND OPERATION

The speaker configuration depends on the level of audio and head unit fitted to the vehicle. The following details the speaker configuration and control for each system.

LOW LINE AUDIO SYSTEM

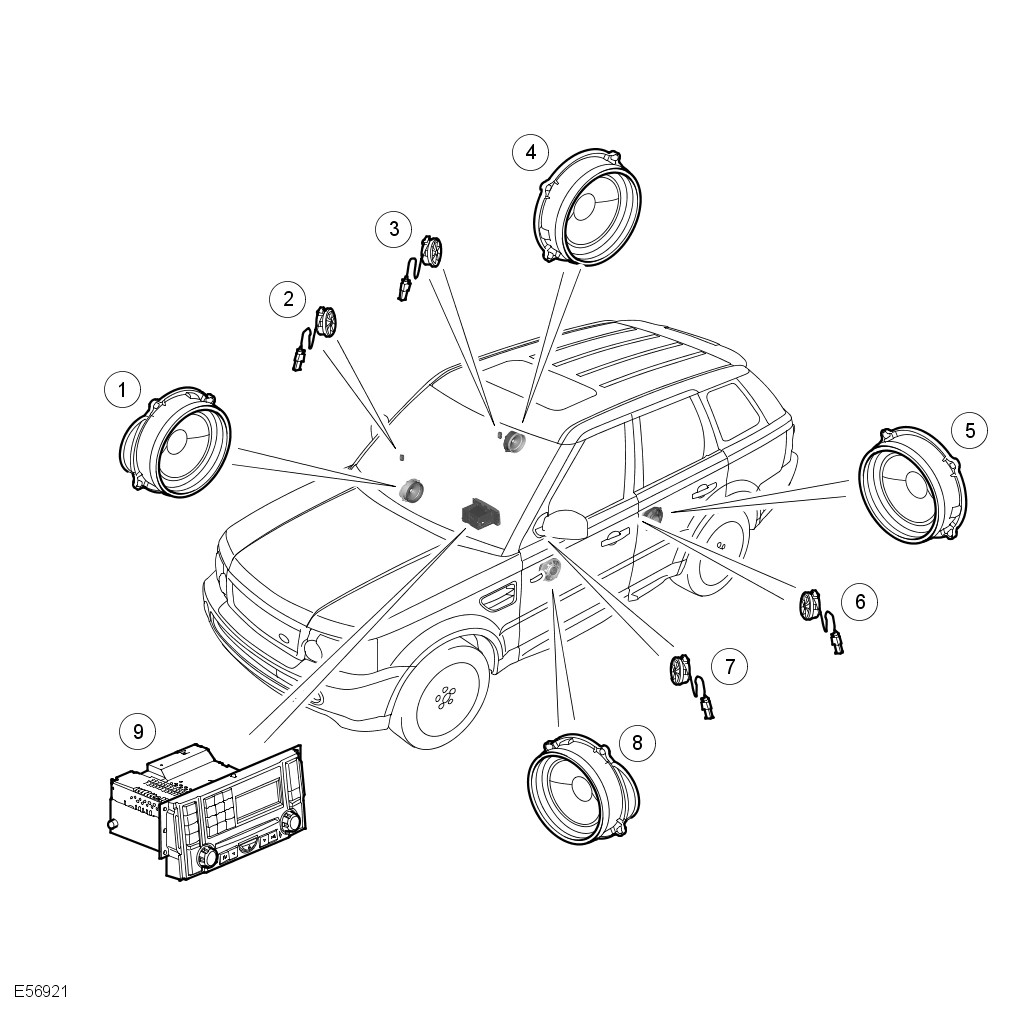

Low Line Audio System Speaker Component Location
E56921

ItemDescription
1Front right-hand (RH) door mid/bass speaker
2Front RH door tweeter
3Rear RH door tweeter
4Rear RH door full range speaker
5Rear left-hand (LH) door full range speaker
6Rear LH door tweeter
7Front LH door tweeter
8Front LH door mid/bass speaker
9Integrated Head unit (IHU)

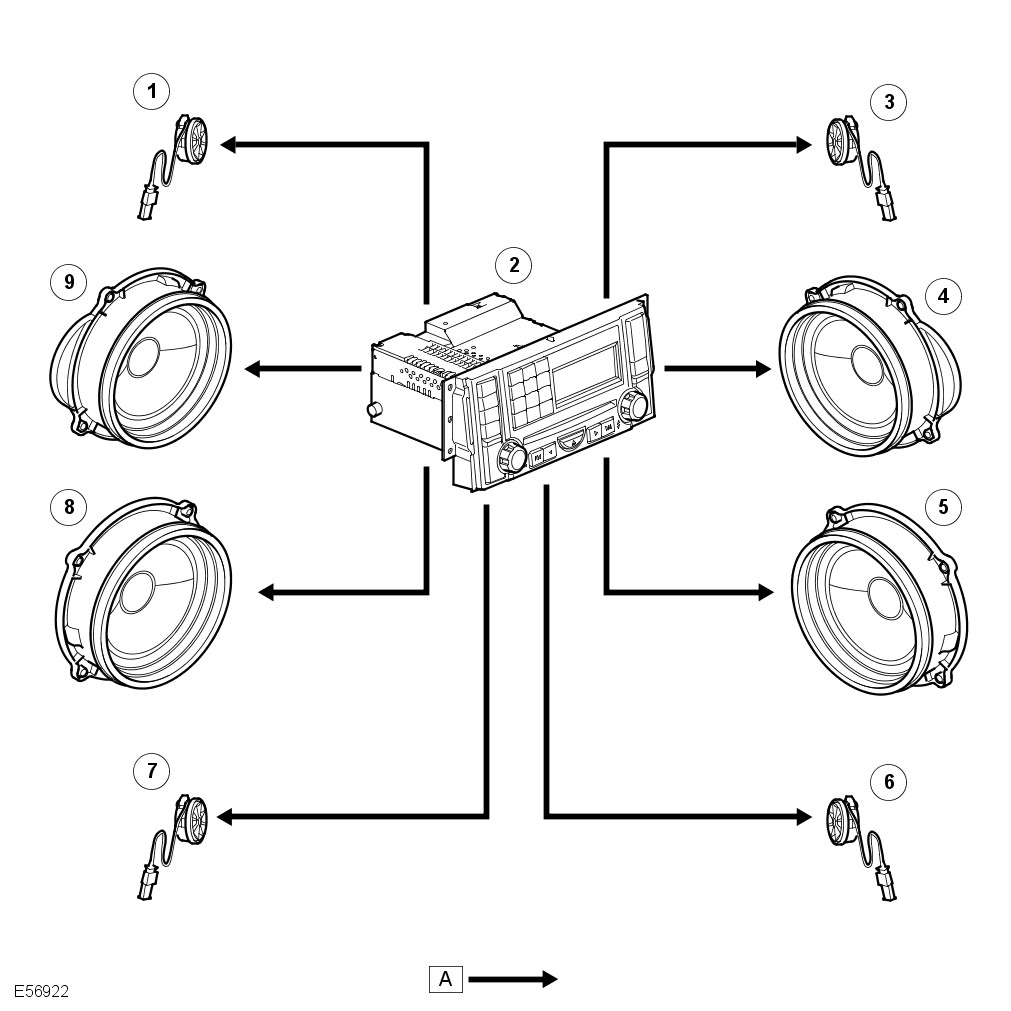

Low Line Audio System Speaker Control Diagram
NOTE:

A= Hardwired

E56922

ItemDescription
1Front LH tweeter
2Integrated Head Unit (IHU)
3Front RH tweeter
4Front RH mid/bass speaker
5Rear RH full range speaker
6Rear RH tweeter
7Rear LH tweeter
8Rear LH full range speaker
9Front LH mid/bass speaker

The low line audio speaker system is driven directly from the Integrated Head Unit (IHU)For additional information, refer to: Audio System (415-01 Audio Unit, Description and Operation)..The system comprises:

  • Head unit
  • Two front door mounted mid/bass speakers (one per side)
  • Two front door mounted tweeters (one per side)
  • Two rear door mounted full range speakers (one per side).
HIGH LINE-HARMAN/KARDON AUDIO SYSTEM

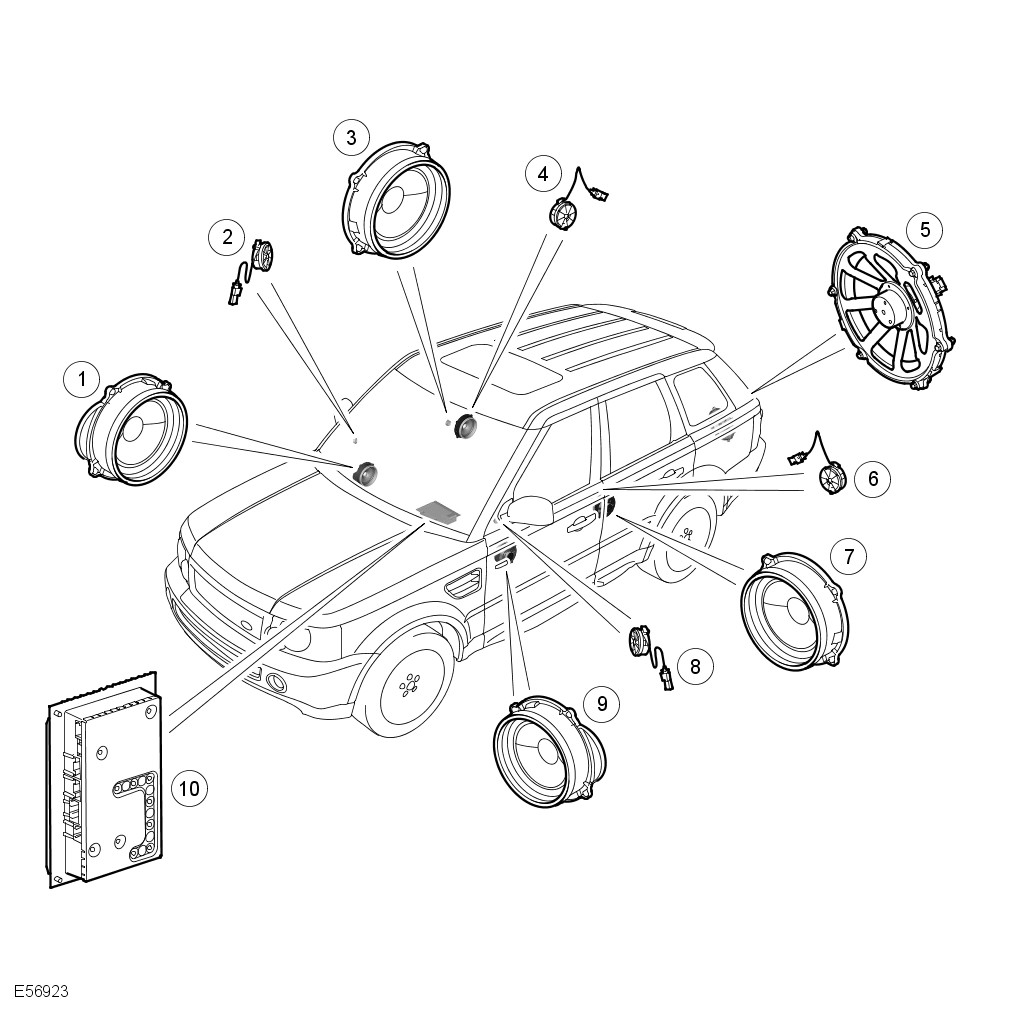

High line-Harman/Kardon Audio System Speaker Component Location
E56923

ItemDescription
1Front RH mid/bass speaker
2Front RH tweeter
3Rear RH mid/bass range
4Rear RH tweeter
5Sub-woofer
6Rear LH tweeter
7Rear LH mid/bass range
8Front LH tweeter
9Front LH mid/bass speaker
10High line amplifier

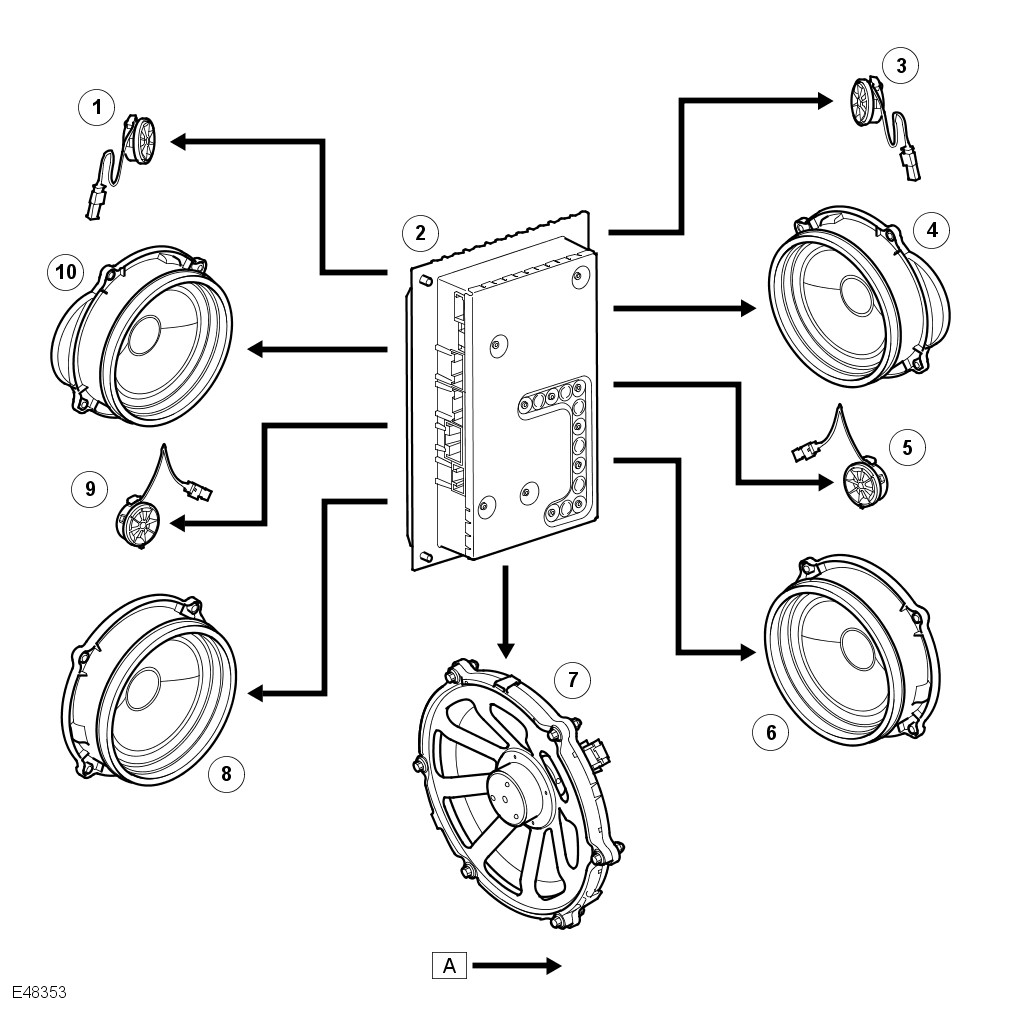

High line-Harman/Kardon Audio System Speaker Control Diagram
NOTE:

A= Hardwired

E48353

ItemDescription
1Front LH tweeter
2High line amplifier
3Front RH tweeter
4Front RH mid/bass speaker
5Rear RH tweeter
6Rear RH mid/bass speaker
7Sub-woofer
8Rear LH mid/bass speaker
9Rear LH tweeter
10Front LH mid/bass speaker

The High line-Harman/Kardon audio speaker system is driven by an amplifier located under the RH front seat. The amplifier is controlled by the Integrated Head Unit (IHU) on the MOST bus and supplies 6x50 Watts output, giving a total system power rating of 300 WattsFor additional information, refer to: Audio System (415-01 Audio Unit, Description and Operation).. The system comprises:

  • Integrated Head Unit (IHU) Head unit
  • Two front door mounted mid/bass range speakers (one per side)
  • Two front door mounted tweeters (one per side)
  • Two rear door mounted mid/bass range speakers (one per side)
  • Two rear door mounted tweeters (one per side)
  • A sub-woofer located in the lower tailgate
  • An audio amplifier located under the front RH seat.
PREMIUM AUDIO SYSTEM - HARMAN/KARDON LOGIC7

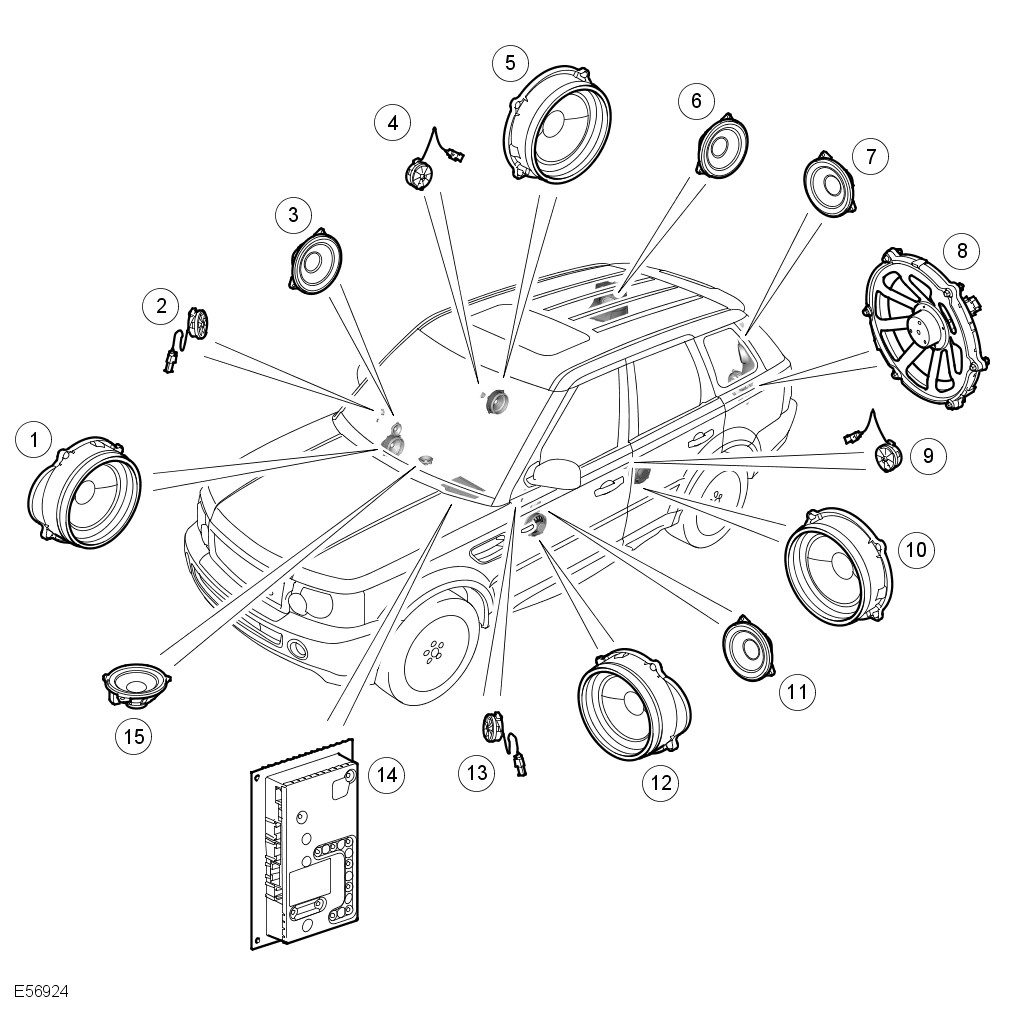

Premium Audio - Harman/Kardon LOGIC7 Audio System Speaker Component Location
E56924

ItemDescription
1Front RH bass speaker
2Front RH tweeter
3Front RH mid range speaker
4Rear RH tweeter
5Rear RH mid/bass speaker
6Rear RH surround speaker
7Rear LH surround speaker
8Sub-woofer
9Rear LH tweeter
10Rear LH mid/bass speaker
11Front LH mid range speaker
12Front LH bass speaker
13Front LH tweeter
14Premium amplifier
15Front center fill speaker

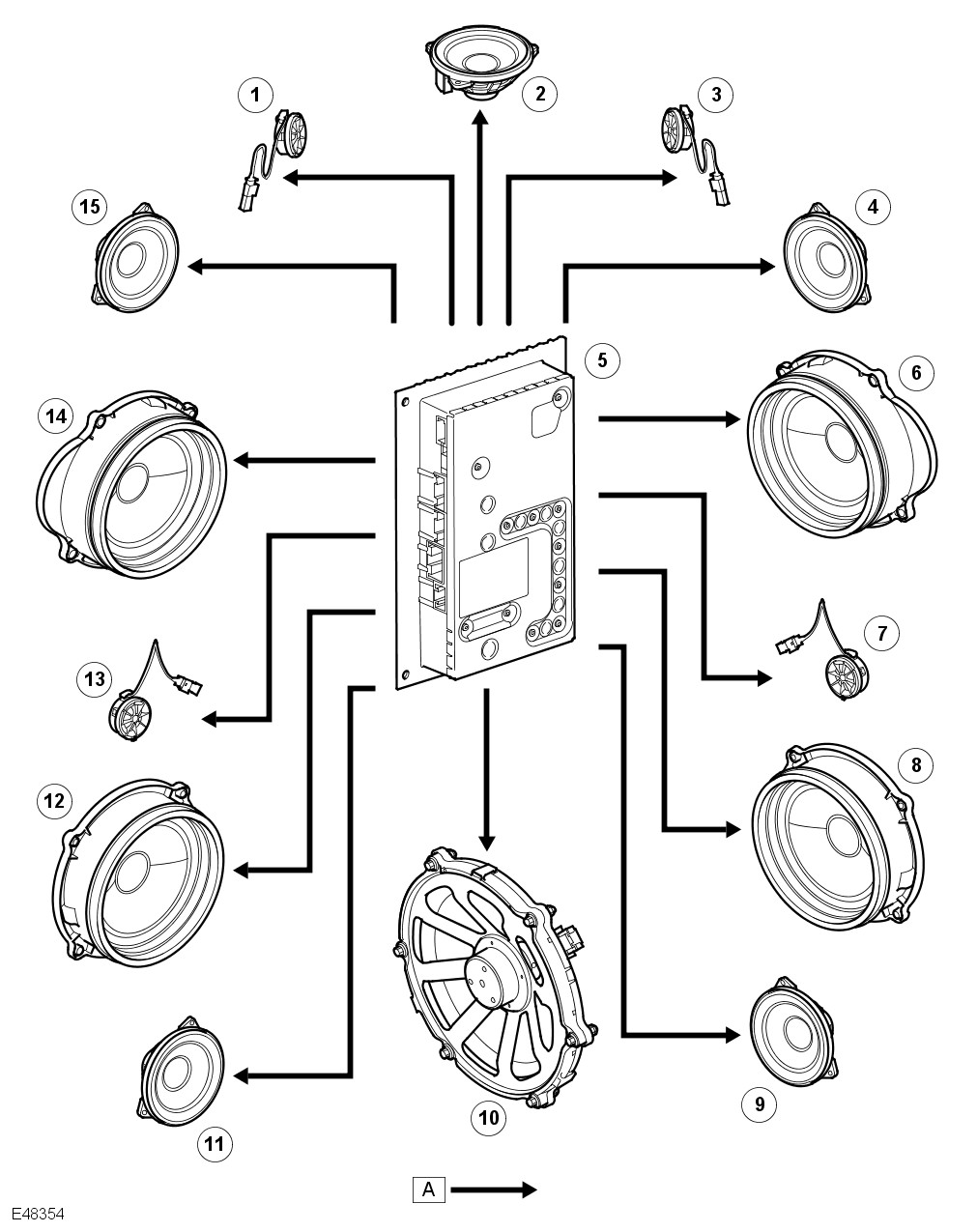

Premium Audio - Harman/Kardon LOGIC7 Audio System Speaker Control Diagram
NOTE:

A= Hardwired

E48354

ItemDescription
1Front LH tweeter
2Front center fill speaker
3Front RH tweeter
4Front RH mid range speaker
5Premium amplifier
6Front RH bass speaker
7Rear RH tweeter
8Rear RH mid/bass range speaker
9Rear RH surround speaker
10Sub-woofer
11Rear LH surround speaker
12Rear LH mid/bass range speaker
13Rear LH tweeter
14Front LH bass speaker
15Front LH mid range speaker

The Premium Audio - Harman/Kardon LOGIC7 audio speaker system is driven by an amplifier located under the RH front seat. The amplifier is controlled by the Integrated Head Unit (IHU) on the MOST bus and supplies 12x50 Watts output, giving a total system power rating of 600 Watts. The system comprises:

  • Integrated Head Unit (IHU) Head unit
  • Two front door mounted mid range speakers (one per side)
  • Two front door mounted bass speakers (one per side)
  • Two front door mounted tweeters (one per side)
  • Two rear door mounted mid/bass range speakers (one per side)
  • Two rear door mounted tweeters (one per side)
  • A sub-woofer located in the lower tailgate
  • Two rear surround speakers
  • One center fill speaker located in the center of the instrument panel
  • Premium amplifier.
