Published: 11-May-2011

2007.0 Range Rover Sport (LS), 412-04

Control Components

Climate Control Assembly (G426884)

REMOVAL AND INSTALLATION
  • 80.10.02
  • Controls - heater - renew
  • All Derivatives
  • 0.80
  • USED WITHINS
Removal
  1. Remove the floor console. For additional information, refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

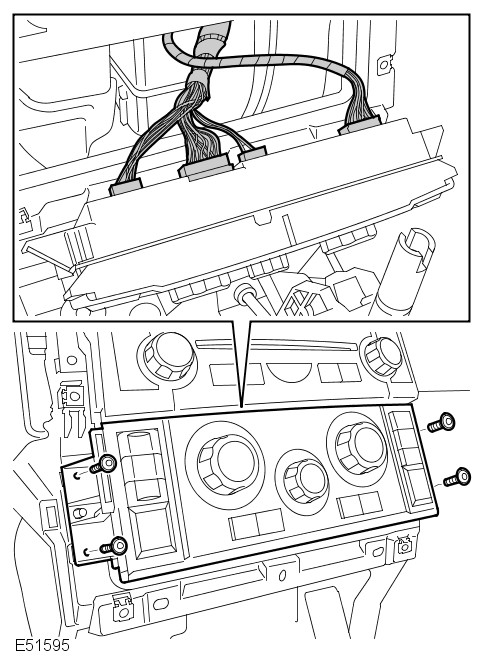

  2. E51595
    Remove the climate control assembly.
      • Remove the 4 Torx screws.
      • Disconnect the 4 electrical connectors.
Installation
  1. Install the climate control assembly.
      • Connect the electrical connectors.
      • Tighten the Torx screws.
  2. Install the floor console. For additional information, refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
