2007.0 Range Rover Sport (LS), 501-12

Instrument Panel and Console

Floor Console (G413336)

REMOVAL AND INSTALLATION
  • 76.25.01
  • Floor Console - Renew
  • All Derivatives
  • 0.70
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).
  3. Release the transmission selector lever.
      • Remove the 4 bolts.
      • Disconnect the electrical connector.

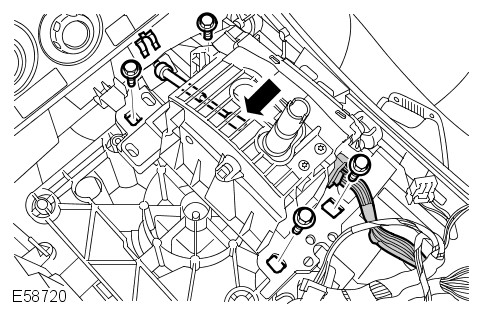

  4. E58720
    Release the selector cable.
      • Remove the clip.

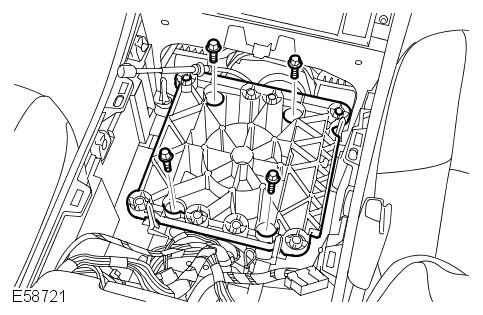

  5. E58721
    Remove the transmission selector lever mount bracket.
      • Remove the 4 bolts.
  6. E47923
    Remove the driver side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.
  7. E47530
    Remove the passenger side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.

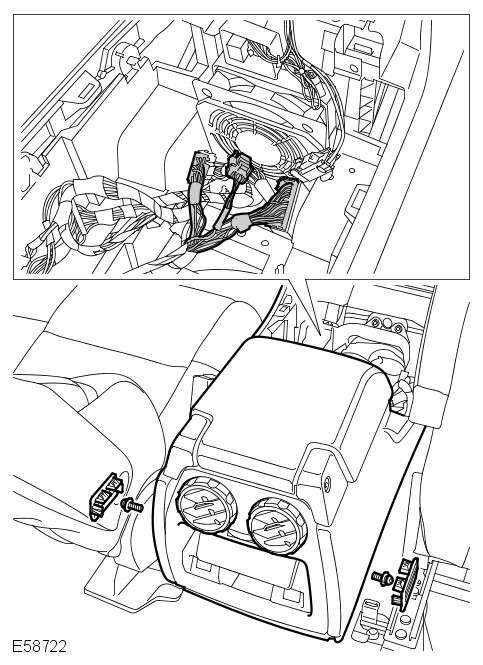

  8. E58722
    Remove the floor console.
      • Manoeuvre the front seats to allow access.
      • Disconnect the 2 electrical connectors.
      • Remove the screw covers.
      • Remove the 2 screws.
Installation
  1. Install the floor console.
      • Connect and secure the electrical connectors.
      • Install the screws.
      • Install the screw covers.
  2. Install the transmission selector lever mount bracket.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  3. Install the transmission selector lever.
      • Secure the cable.
      • Tighten the bolts to 10 Nm (7 lb.ft).
      • Connect and secure the electrical connectors.
  4. Install the driver side closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.
  5. Install the passenger side closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.
  6. Install the floor console upper panel. For additional information, refer to: Floor Console Upper Panel (501-12 Instrument Panel and Console, Removal and Installation).
  7. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
