2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

Loadspace Scuff Plate Trim Panel (G424988)

REMOVAL AND INSTALLATION
  • 76.76.03
  • Tread plate - load space - renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Remove the LH loadspace trim panel. For additional information, refer to: Left Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. Remove the RH loadspace trim panel. For additional information, refer to: Right Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  3. E53649
    Remove the loadspace scuff plate .
      • Release the liftgate seal.
      • Release the 4 clips.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

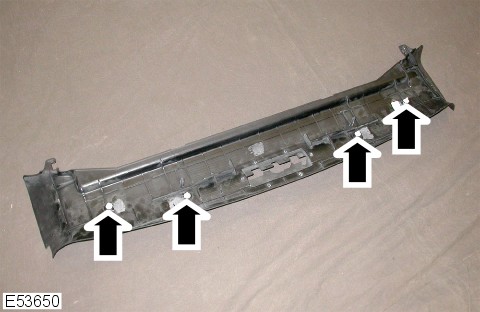

    E53650
    Remove the retaining clips.
Installation
  1. Install the clips.
  2. Install the loadspace scuff plate.
      • Position the locating pegs.
      • Secure the clips.
      • Install the liftgate seal.
  3. Install the LH loadspace trim panel. For additional information, refer to: Left Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  4. Install the RH loadspace trim panel. For additional information, refer to: Right Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
