2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

Left Loadspace Trim Panel (G424989)

REMOVAL AND INSTALLATION
  • 76.19.21
  • Trim - floor - load space - LH - renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
  1. E53654
    Remove the loadspace floor panels.
      • Lift and remove the front panel.
      • Lift and remove the rear panel.

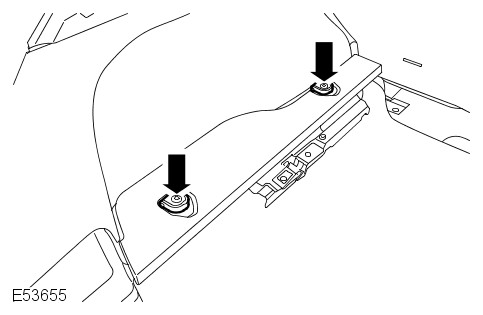

  2. E53655
    Remove the loadspace compartment anchors.
      • Remove the bolt.
      • Repeat the above procedure for the other anchor.

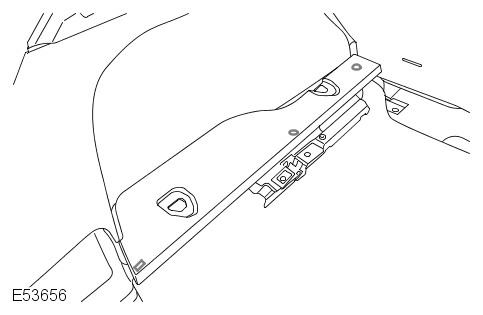

  3. E53656
    Remove the loadspace trim panel.
      • Release the 3 clips.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

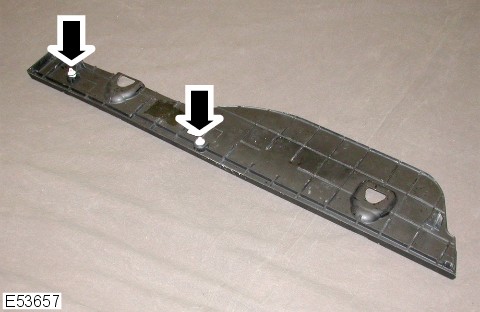

    E53657
    Remove the 2 clips.
Installation
  1. Install the clips.
  2. Install the loadspace trim panel.
      • Secure the clips.
      • Position the locating pegs.
  3. Install the loadspace compartment anchors.
      • Position the locating peg.
      • Tighten the bolt to 25 Nm (18 lb.ft).
      • Repeat the above procedure for the other anchor.
  4. Install the loadspace floor panels.
