Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-16

Wipers and Washers

Rear Window Wiper Motor (G424861)

REMOVAL AND INSTALLATION
  • 84.35.12
  • Rear Wiper Motor - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the rear window wiper arm. For additional information, refer to: Rear Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).

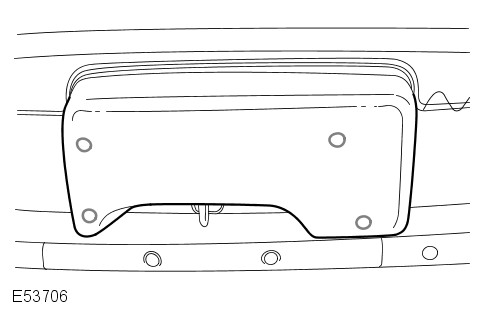

  3. E53706
    Remove the liftgate glass wiper motor trim panel.
      • Carefully release the 4 clips.

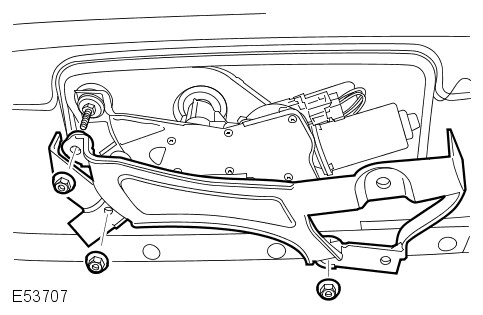

  4. E53707
    Remove the trim panel retaining plate.
      • Remove the 3 nuts.

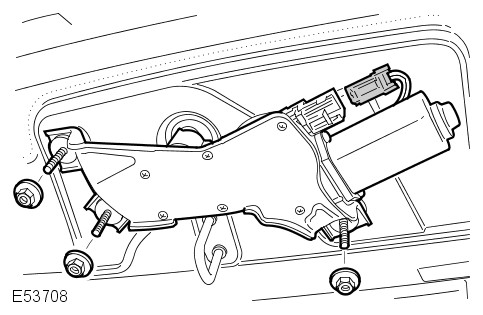

  5. E53708
    Remove the rear window wiper motor.
      • Disconnect the electrical connector.
      • Remove the 3 nuts.
  6. NOTE:

    Do not disassemble further if the component is removed for access only.

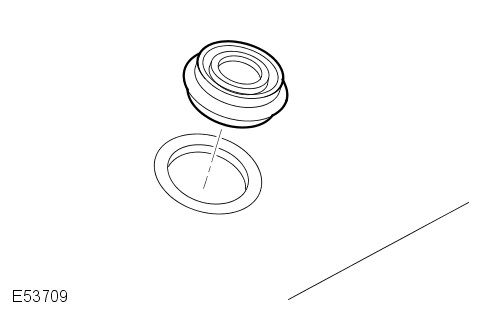

    E53709
    Remove the rear wiper drive spindle seal.

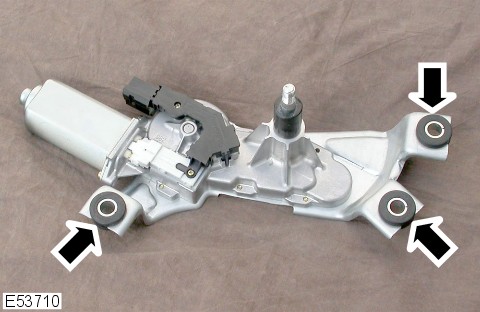

  7. E53710
    Remove the 3 rubber insulators.
      • Remove the metal inserts.
Installation
  1. Install the rubber insulators.
  2. Install the rear wiper drive spindle seal.
      • Clean the component mating faces.
  3. Install the rear window wiper motor.
      • Tighten the nuts to 10 Nm (7 lb.ft).
      • Connect and secure the electrical connector.
  4. Install the trim panel retaining plate.
      • Tighten the nuts to 6 Nm (4 lb.ft).
  5. Install the liftgate glass wiper motor trim panel.
      • Carefully secure the clips.
  6. Install the rear wiper arm. For additional information, refer to: Rear Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).
  7. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
