2007.0 Range Rover Sport (LS), 501-16

Wipers and Washers

Rear Wiper Pivot Arm (G426565)

REMOVAL AND INSTALLATION
  • 84.35.01
  • Rear Window Wiper Arm - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS

Special Tool(s)

E49451

100-005A (LRT-99-500A)

General purpose puller

Removal

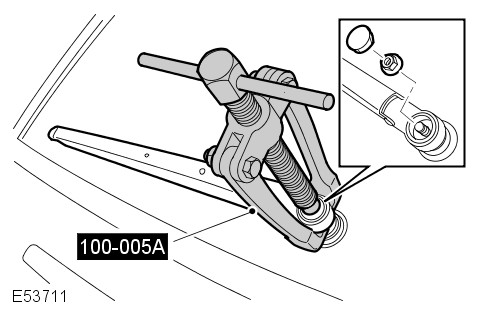

  1. E53711
    Noting the fitted position and using the special tool, remove the rear wiper pivot arm.
      • Remove the nut cover.
      • Remove the nut.
  2. NOTE:

    Do not disassemble further if the component is removed for access only.

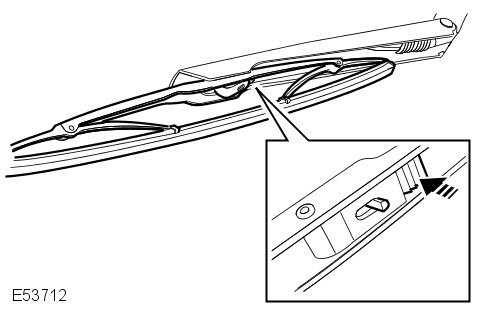

    E53712
    Remove the wiper blade.
      • Release the clip.
Installation
  1. To install, reverse the removal procedure.
      • Tighten the nut to 15 Nm (11 lb.ft).
