Published: 11-May-2011

2007.0 Range Rover Sport (LS), 412-04

Control Components

Instrument Panel Blend Door Actuator - LHD AWD (G424636)

REMOVAL AND INSTALLATION
  • 80.20.09
  • Motor - face level air vent - renew
  • Left hand drive
  • 2.90
  • USED WITHINS
Removal
  1. Remove the instrument panel driver side reinforcement. For additional information, refer to: Instrument Panel Driver Side Reinforcement (501-12 Instrument Panel and Console, Removal and Installation).
  2. NOTE:

    Some variation in the illustrations may occur, but the essential information is always correct.

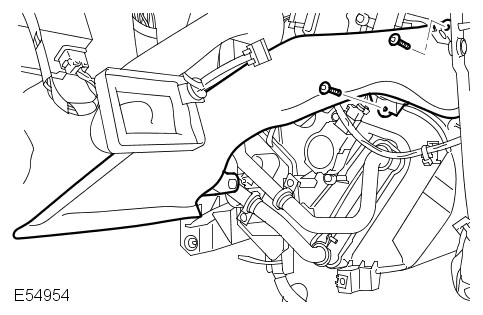

    E54954
    Remove the driver side footwell duct.
      • Remove the 2 Torx screws.
  3. NOTE:

    Some variation in the illustrations may occur, but the essential information is always correct.

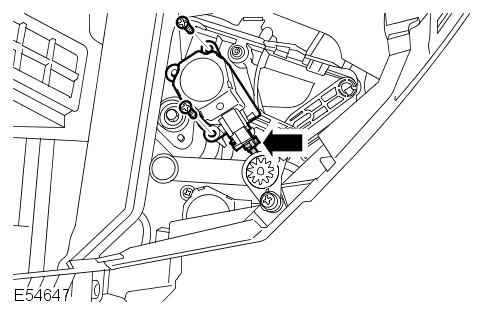

    E54647
    Remove the instrument panel blend door actuator.
      • Disconnect the electrical connector.
      • Remove the 2 screws.
Installation
  1. Install the instrument panel blend door actuator.
      • Tighten the screws to 1 Nm.
      • Connect the electrical connector.
  2. Install the driver side footwell duct.
      • Tighten the screws.
  3. Install the instrument panel driver side reinforcement. For additional information, refer to: Instrument Panel Driver Side Reinforcement (501-12 Instrument Panel and Console, Removal and Installation).
