Published: 11-May-2011

2007.0 Range Rover Sport (LS), 413-13

Parking Aid

Parking Aid Speaker (G424459)

REMOVAL AND INSTALLATION
  • 86.54.19
  • Sounder - parking aid rear - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the LH lower rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

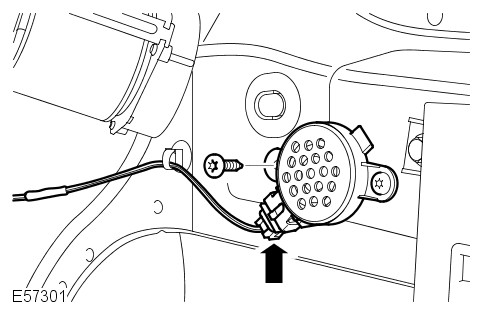

  3. E57301
    Remove the parking aid sounder.
      • Remove the 2 screws.
      • Disconnect the electrical connector.
Installation
  1. Install the parking aid sounder.
      • Tighten the screws.
      • Connect and secure the electrical connector.
  2. Install the rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
