Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-11

Glass, Frames and Mechanisms

Rear Door Window Glass (G423320)

REMOVAL AND INSTALLATION
  • 76.31.02
  • Rear Door Window - Renew
  • All Derivatives
  • 0.80
  • USED WITHINS
Removal
  1. Remove the rear door window motor and regulator assembly. For additional information, refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
  2. Lower the rear door glass to the bottom of the door.
      • Remove the wedge.

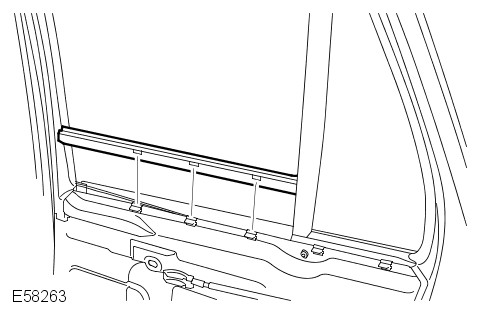

  3. E58263
    Carefully remove the inner waist seal.
      • Release it from 3 clips.

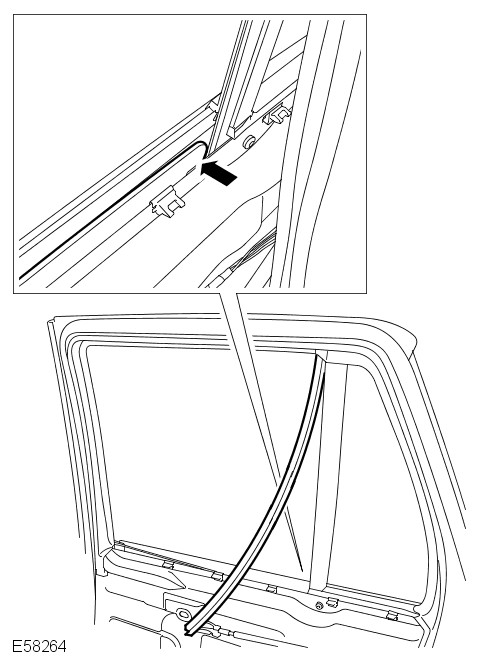

  4. E58264
    Position the rear edge of the glass, forward of the glass guide channel.
      • Release the lining from the glass rear guide channel.

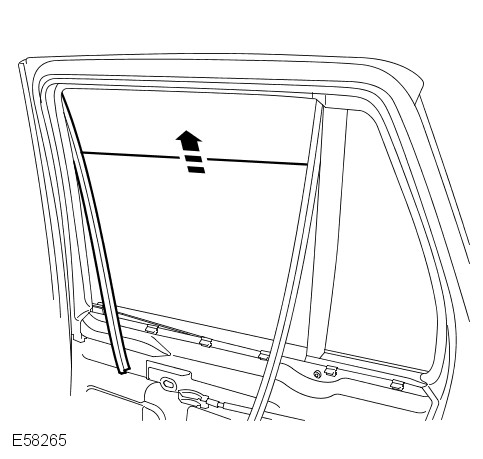

  5. E58265
    Remove the rear door window glass.
      • Release the lining from the glass front guide channel.
  6. NOTES:

    • Do not disassemble further if the component is removed for access only.

    • Note the fitted position.

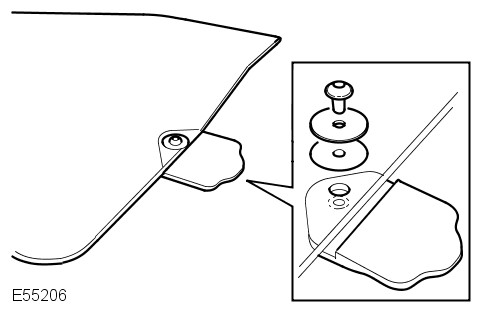

    E55206
    Remove the glass retaining clip.
      • Remove the Torx bolt.
      • Remove the spacer washer.
      • Remove the flat washer.
Installation
  1. Install the glass retaining clip.
      • Install the spacer.
      • Install the washer.
      • Tighten the Torx screws to 8 Nm (6 lb.ft).
  2. Install the rear door window glass.
  3. Install the guide channel lining.
  4. Install the inner waist seal.
  5. NOTE:

    Wedge the glass in this position.

    Raise the rear door glass fully.
  6. Install the rear door window motor and regulator assembly. For additional information, refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
