Published: 11-May-2011

2007.0 Range Rover Sport (LS), 205-03

Front Drive Axle/Differential

Axle Tube Bushing (G418559)

REMOVAL AND INSTALLATION

Special Tool(s)

E60582

308-625/1

Remover/installer - Front axle extension support bush

E60583

308-625/2

Remover/installer - Front axle extension support bush

E60584

308-625/3

Remover/installer - Front axle extension support bush

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Raise and support the vehicle.
  3. Remove the axle tube. For additional information, refer to: Axle Tube (205-03 Front Drive Axle/Differential, In-vehicle Repair).
  4. NOTE:

    Note the fitted position.

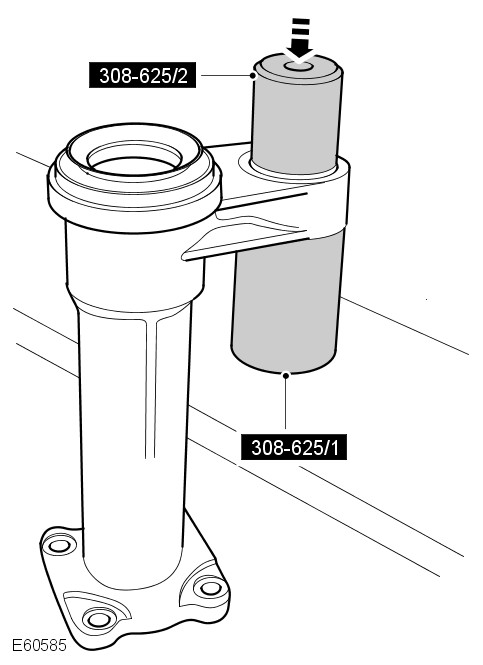

    E60585
    Using the special tools, remove the bushing.
Installation
  1. NOTE:

    Note the fitted position.

    E60586
    Using the special tools, install the bushing.
  2. Install the axle tube. For additional information, refer to: Axle Tube (205-03 Front Drive Axle/Differential, In-vehicle Repair).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
