2007.0 Range Rover Sport (LS), 205-03

Front Drive Axle/Differential

Axle Tube (G2250134)

IN-VEHICLE REPAIR

Part(s)

StepPart nameQuantity
Installation Step 1Halfshaft seal1
Removal
  1. Remove the RH halfshaft.
    Refer to: Front Right Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).
  2. E54156

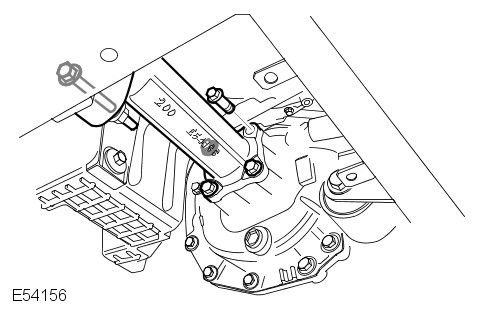

    Remove the bolt from the bushing. Remove the 4 bolts. Rotate and remove the axle tube. Early models: Remove and discard the O-ring seal. Later models: Remove the sealant.
Installation
  1. Install the axle tube. Clean the component mating faces. Early models: Install a new O-ring seal. Later models: Apply sealant to the mating face. Tighten the 4 axle tube bolts. Tighten the axle tube bushing bolt.
    Renew Part: Halfshaft seal Quantity: 1.
    Torque
    Tube bolts: 50Nm
    Tube bushing bolt: 63Nm
  2. Install the RH halfshaft.
    Refer to: Front Right Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).
