Published: 11-May-2011

2007.0 Range Rover Sport (LS), 204-04

Wheels and Tires

Tire Pressure Monitoring System Front Antenna (G418325)

REMOVAL AND INSTALLATION
  • 86.53.16
  • Antenna - front wheel - tire pressure monitoring system (TPMS) - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Raise and support the vehicle.
  2. Remove the fender splash shield. For additional information, refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

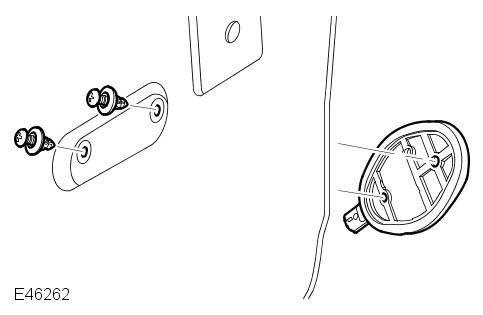

  3. E46262
    Remove the tire pressure antenna.
      • Remove the 2 retainers.
Installation
  1. To install, reverse the removal procedure.
  2. Initiate a new tire pressure antenna using T4.
