2007.0 Range Rover Sport (LS), 501-20B

Supplementary Restraint System

Passenger Airbag Module (G417352)

REMOVAL AND INSTALLATION
  • 76.74.02
  • Air Bag - Fascia - Passenger - Renew
  • All Derivatives
  • 4.30
  • USED WITHINS
Removal
WARNINGS:

  • It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

  • Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

NOTE:

If the SRS component is to be replaced, the bar code of the new unit must be recorded.

  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Make the SRS system safe. For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  3. Remove the instrument panel upper section. For additional information, refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).
  4. E47176
    Remove the passenger air bag module.
      • Remove the 4 nuts.
  5. NOTE:

    Do not disassemble further if the component is removed for access only.

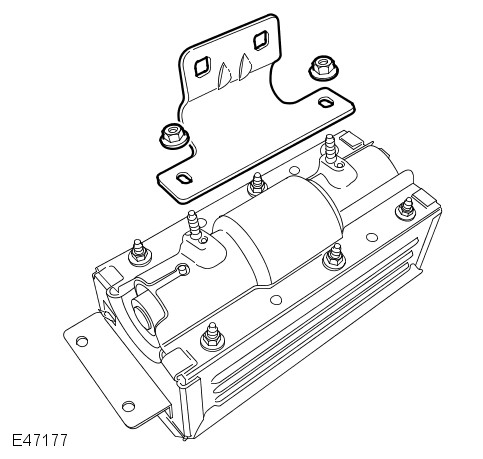

    E47177
    Remove the passenger air bag module bracket.
      • Remove the 2 nuts.
Installation
  1. Install the passenger air bag module bracket.
      • Tighten the nuts to 10 Nm (7 lb.ft).
  2. Install the passenger air bag module.
      • Tighten the nuts to 10 Nm (7 lb.ft).
  3. Install the instrument panel upper section. For additional information, refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
