Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-16

Wipers and Washers

Headlamp Washer Jet (G384557)

REMOVAL AND INSTALLATION
  • 84.20.08
  • Headlamp Washer Jet - Renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the front fog lamp. For additional information, refer to: Front Fog Lamp (417-01 Exterior Lighting, Removal and Installation).

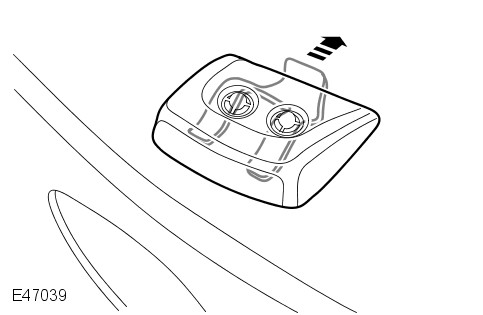

  3. E47039
    Release the washer jet assembly.
      • Release the clip.

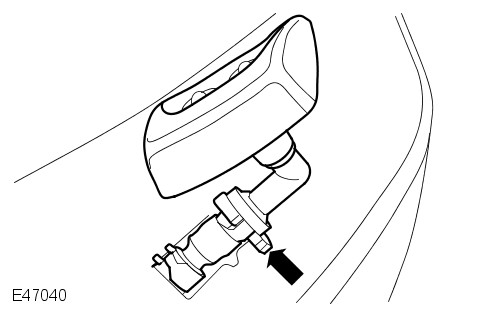

  4. E47040
    Remove the washer jet.
      • Release the hose clip and disconnect the hose.
Installation
  1. To install, reverse the removal procedure.
