Published: 11-May-2011

2007.0 Range Rover Sport (LS), 417-01

Exterior Lighting

Front Fog Lamp (G300966)

REMOVAL AND INSTALLATION
  • 86.40.96
  • Front Fog Lamp - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
  1. NOTE:

    Release each clip individually. Clips may fall off if care is not taken.

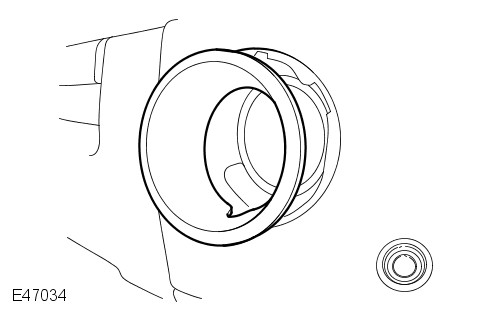

    E47034
    Remove the front fog lamp bezel.
      • Release the 6 clips.

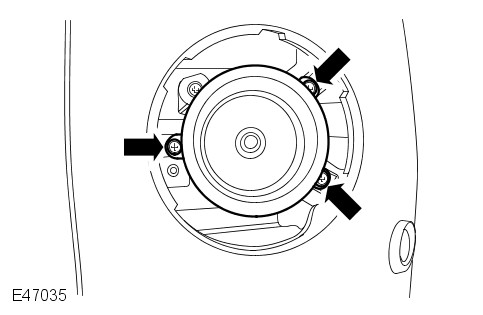

  2. E47035
    Release the front fog lamp.
      • Remove the 3 screws.

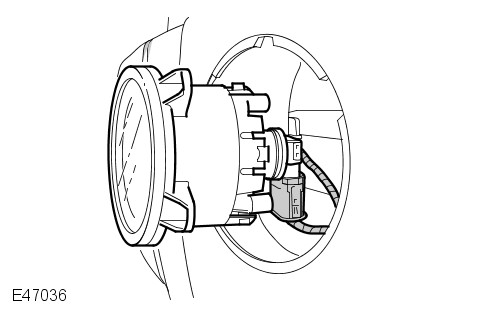

  3. E47036
    Remove the front fog lamp.
      • Disconnect the front fog lamp electrical connector.
Installation
  1. Connect the front fog lamp electrical connector.
  2. Install the front fog lamp.
      • Tighten the screws.
  3. Install the front fog lamp bezel.
      • Secure the clips.
  4. Check the fog lamp beam alignment.
