Published: 08-Nov-2013

2007.0 Range Rover Sport (LS), 308-07A

Four-Wheel Drive Systems

Transfer Case Shift Motor (G323484)

REMOVAL AND INSTALLATION
  • 41.30.03
  • Transfer Case Control Module - Renew
  • TDV8
  • 0.70
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the transmission crossmember. For additional information, refer to: Transmission Support Crossmember (502-02 Full Frame and Body Mounting, Removal and Installation).
  3. CAUTIONS:

    • To avoid damage to the joints or gaiters, do not allow the transmission to hang on the driveshafts.

    • Discard the bolts.

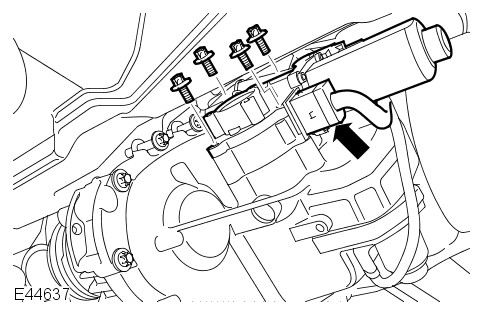

    E44637
    Remove the shift motor.
      • Lower the rear of the transmission for access.
      • Disconnect the electrical connector.
      • Remove the 4 Torx bolts.
Installation
  1. CAUTION:

    Make sure that new bolts are installed.

    Install the shift motor.
      • Clean the components.
      • Tighten the Torx bolts to 35 Nm (26 lb.ft).
      • Connect the electrical connector.
  2. Install the transmission crossmember. For additional information, refer to: Transmission Support Crossmember (502-02 Full Frame and Body Mounting, Removal and Installation).
  3. Connect the Land Rover approved diagnostic equipment.
    1. Start the diagnostic service function transfer case-transfer case replacement.
    2. Clear any Diagnostic Trouble Codes (DTCs) after calibration and check for correct operation.
