Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems

Hood Latch Release Handle (G301702)

REMOVAL AND INSTALLATION
  • 76.16.30
  • Trigger/release handle - lock - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Remove the cowl side trim panel. For additional information, refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

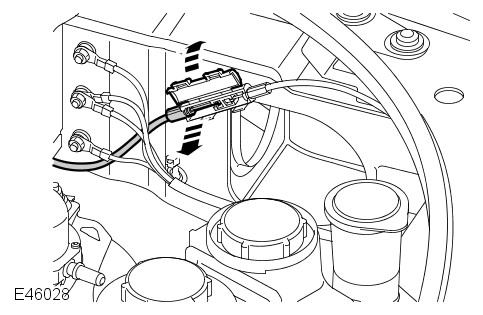

  2. E46028
    Disconnect the hood release cable from the connecting box.
      • Open the connecting box cover.

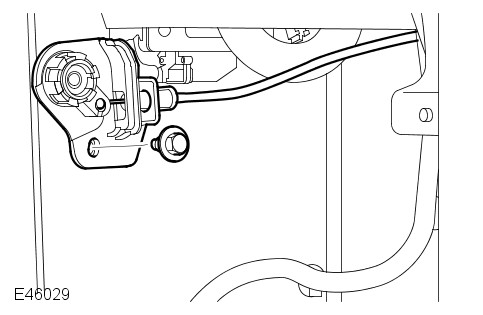

  3. E46029
    Remove the hood release lever housing.
      • Remove the bolt.
      • Disconnect the hood release cable.
Installation
  1. Install the hood release lever housing.
      • Connect the hood release cable.
      • Tighten the bolt to 5 Nm (3.7 lb.ft).
  2. Attach the hood release cable to the connecting box.
      • Close the connecting box cover.
  3. Install the cowl side trim panel. For additional information, refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
