Published: 17-Jan-2018

2007.0 Range Rover Sport (LS), 501-10

Seating

Front Row Seat Cushion Cover (G301511)

REMOVAL AND INSTALLATION
  • 78.30.01
  • Cover - one piece - front seat cushion - LH/each - renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. Remove the front seat cushion assembly. For additional information, refer to: Front Row Seat Cushion (501-10 Seating, Removal and Installation).

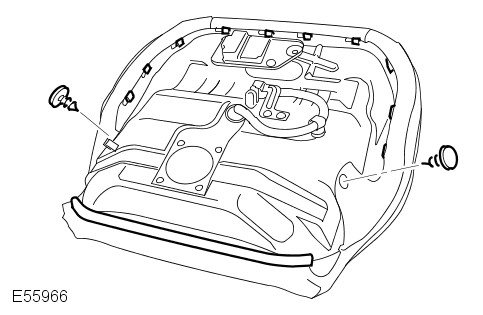

  2. E55966
    Release the front seat cushion cover.
      • Release the 13 clips.

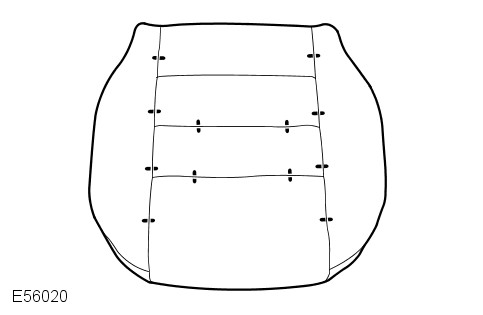

  3. E56020
    Remove the front seat cushion cover.
      • Remove and discard the 12 hog rings.
Installation
  1. NOTE:

    Make sure that new hog rings are installed.

    Install the front seat cushion cover.
      • Install the hog rings.
      • Attach the cover and secure with the clips.
  2. Install the front seat cushion assembly. For additional information, refer to: Front Row Seat Cushion (501-10 Seating, Removal and Installation).
